5A-10A controllers

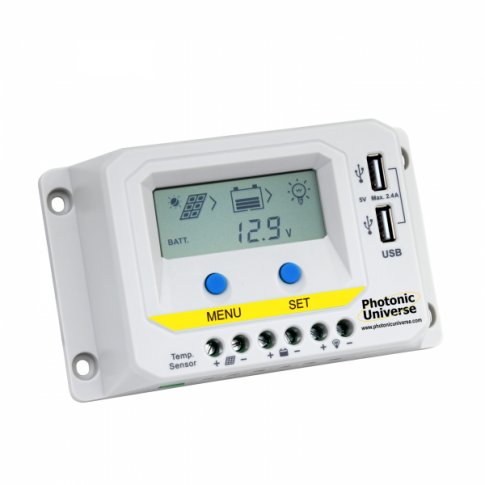

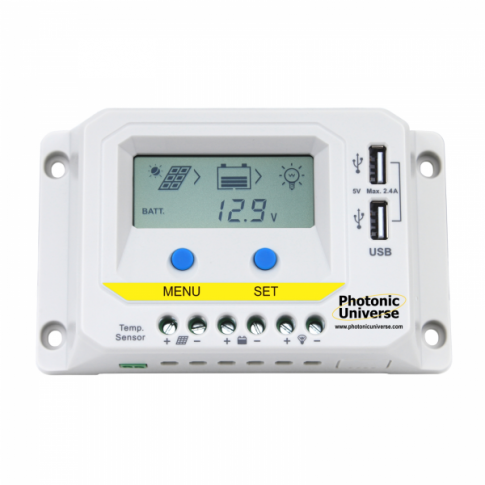

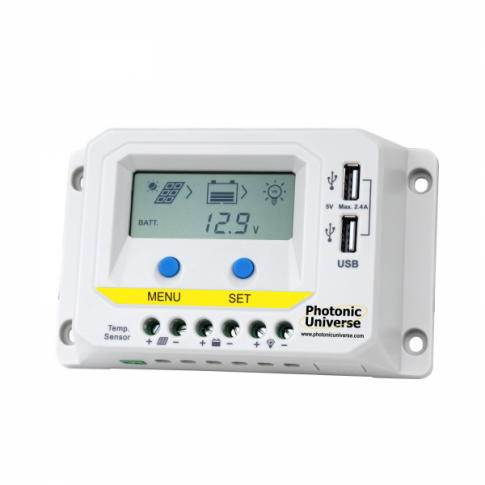

10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)

10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)

Phone order?

Call our FREE phone
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
VS1024AU
Ex. VAT £28.33
Inc. VAT £33.99
Availability:
In stock
Add to shopping cart



This 10A 12V / 24V solar charge controller offers advanced monitoring of the charging process and a wide selection of load programming features, whilst providing full protection for your battery bank. This user-friendly controller also boasts an LCD display and convenient dual USB output for fast charging of USB-compatible devices.

The controller uses PWM (Pulse Width Modulation) technology which has the ability to increase charge acceptance and extend the lifespan of the battery. PWM technology can also recover some lost battery capacity.

Full system protection:

This charge controller features a full range of electronic safety functions including protection against reverse current at night (from the battery back to the solar panel) and automatic cut-off to prevent over-charging, deep discharge, overheating, overload, short circuit and reverse polarity (of the solar panels and batteries).

Advanced programming and monitoring features:

This model features an LCD display with multilevel menu operation and a user-friendly interface with two multifunctional buttons. The screen displays information regarding real time solar panel and battery performance, including: voltage, current, battery state of charge, and battery temperature. An energy statistics counter also displays the accumulated daily and monthly charge values (useful for comparing solar panel performance between different periods).

An optional programmable load (e.g. 12V lighting / fans / water pumps) may also be connected directly to the solar charge controller. Using the buttons and LCD display, the user can set personalised On/Off timers for these appliances.

In addition, this controller also offers various charging programs for different battery types, which can be easily selected by the user.

Rapid USB charging:

This solar charge controller also offers the rare and highly sought-after feature of a dual USB charging output. These 5V USB ports have a total combined output of 2.4A, offering fast and powerful charging of USB compatible devices such as mobile phones, tablets, mp3 players etc.

Additional features:

In addition to the inbuilt temperature sensor, the controller has a pair of terminals for connecting a remote temperature sensor (sold separately), which can be attached directly to the battery to obtain a more precise temperature measurement and optimise the charging process.

Compatibility:

This controller is suitable for solar panels with a combined power of up to 160W (12V battery system) / 320W (24V battery system). The wide solar input voltage range of up to 50V ensures that even on-grid solar modules with a voltage higher than 12V / 24V can be used (please note that this controller is most efficient when the maximum solar panel voltage is just marginally higher than the battery voltage, e.g. 17V-18V solar panels will be best for charging 12V batteries).

This solar charge controller is designed for use with a sealed (default), gel or flooded battery / battery bank with a voltage of 12V or 24V. The controller will automatically determine the appropriate working mode.

Click on the Details and Specifications tab for more information.



Controller specifications:

  • Fully automated operation and auto 12/24V selection
  • Rated charge/discharge current: 10A
  • Maximum solar panel input power: 160W (12V) / 320W (24V)
  • Maximum solar panel input voltage 50V
  • Temperature sensor for automatic compensation: -3mV/C/2V (25C)
  • Working temperature: -25C to +55C
  • Self-consumption: max. ≤9.2mA (12V); ≤11.7mA (24V)
  • 3 pairs of terminals (solar, battery, optional load)
  • Terminals for wire up to 4mm2
  • Multiple mounting holes for ease of installation
  • Size: 14.2 x 8.5 x 4.1 cm
  • Weight: 220 g



This product is covered by a 2 year manufacturer warranty. For more information please refer to our Terms and Conditions.



This unit comes with a detailed user manual which explains wiring and operations.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
