Wind Charge Controllers

400W 12V Waterproof wind charge controller / regulator for 12V wind turbines up to 400W

400W 12V Waterproof wind charge controller / regulator for 12V wind turbines up to 400W
400W 12V Waterproof wind charge controller / regulator for 12V wind turbines up to 400W

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
FW04-12
Ex. VAT £41.66
Inc. VAT £49.99
Availability:
In stock
Add to shopping cart

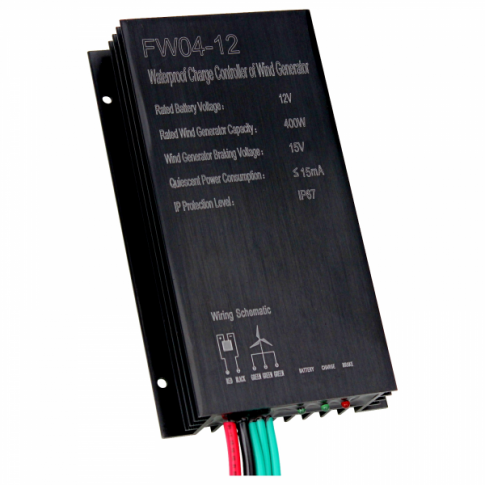

This waterproof 400W 12V wind charge controller is designed to charge lead acid batteries using energy generated from wind turbines. The controller seamlessly converts AC three-phase output from a wind generator into DC output, ready for charging a 12V battery or battery bank.

This wind controller is equipped with advanced dual safety protection, designed to protect both the battery and the wind turbine itself. This is achieved through the intelligent automatic braking function - applied to the turbine when the battery is full, to protect the battery from overcharging. Automatic braking also helps to prevent damage to the wind turbine when high wind speeds are detected.

The fully waterproof casing (IP67 rated) ensures that this wind controller is suitable for outdoor mounting. The unit also features LED indicators to show the current mode, system connection status and rotation speed of the wind generator.

This wind controller is compatible with 12V wind turbines ranging from a minimum capacity of 100W to a maximum of 400W.

Click on the Details and Specifications tab for more information.



Controller specifications:

  • Battery voltage: 12V
  • Minimum wind generator capacity: 100W
  • Maximum wind generator capacity: 400W
  • Wind generator braking voltage: 15V
  • Wind generator recovery voltage: 13.5V
  • Display mode: LED
  • Ambient temperature: -35~+75℃
  • Dimensions: 150 x 87 x 28 mm
  • Weight: 400g
  • Quiescent current: ≤15 mA
  • IP protection level: IP67



This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.





This product comes with an instruction manual which explains connections and operations.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).





The following documents are available to download:

User manual for 400W 12V Waterproof wind charge controller FW04-12
