Other cable

RJ45 to USB cable to connect a solar charge controller to a PC / computer (1.5m length)

RJ45 to USB cable to connect a solar charge controller to a PC / computer (1.5m length)
RJ45 to USB cable to connect a solar charge controller to a PC / computer (1.5m length)

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
PTR-USB
Ex. VAT £14.99
Inc. VAT £17.99
Availability:
In stock
Add to shopping cart

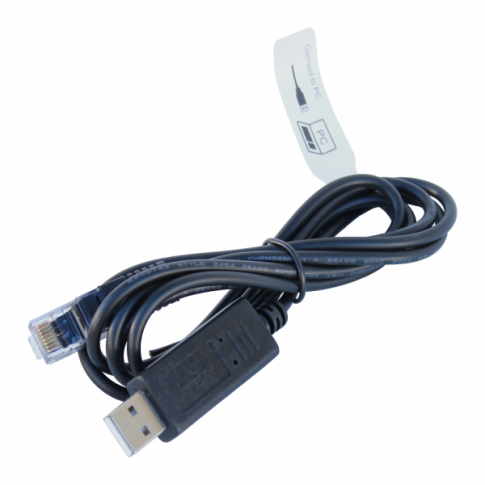

This 1.5m RJ45 to USB cable is designed for connecting a solar charge controller to your PC / laptop for remote monitoring and personalisation of your solar system via a special software which is free to download and use (suitable for Windows operating system only).

The cable is designed for use with any Tracer TR / PTR series solar charge controller, or with any VS****BN, LS or PU**24B series controller.

By using this cable to set up a connection between your solar charge controller and a special software programme on your PC or laptop, you will be able to monitor various charging parameters such as voltage, current (separately for solar panel / load), battery state of charge, etc. You will also be able to access energy counters such as accumulated charge and discharge energy, as well as min / max voltages.

In addition, you will also unlock a range of exclusive settings for your controller; giving you far greater control over your solar system. With access to this vast range of charging parameters, you will be able to:

- Amend the battery type and capacity
- Select charging volts for different charging stages
- Specify the duration of each charging stage
- Create a user-defined battery type with charging parameters specific to your battery (if the pre-existing options are unsuitable)
- Personalise the 'load' settings - e.g. set timers for lighting, fans, pumps

Click on the Details and Specifications tab for more information about this product.



Cable specifications:

  • Cable length: 1.5 metres
  • Connection: 1 x RJ45, 1 x USB
  • Compatible with TR, PTR, VS****BN, LS and PU**24B controllers.





Connection is easy: download the free software by following this link and install it on your PC / laptop (with a Windows-based operating system). Afterwards, simply plug the RJ45 connector into the corresponding socket of your solar charge controller, then plug the other end of the cable into the USB socket of your PC or laptop.
