The AMOY-KIT is a comprehensive, high-performance power management system designed specifically for vehicles and mobile energy applications. Combining intelligent monitoring, advanced control, and seamless communication, the kit ensures optimal performance, safety, and convenience for any vehicle-based or off-grid power system.

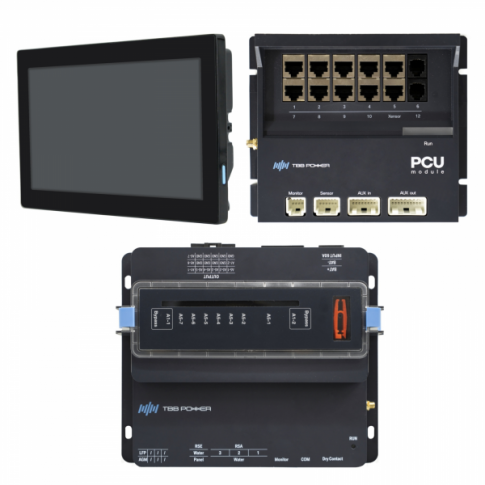

What's Included:

• AMOY-A7 Monitor (7" TFT, touch control, Bluetooth, Android-based)
• AMOY-CRS29 Distribution Module (9 output channels, sensor input, communication hub)
• AMOY-PCU Control Unit (intelligent central control, system protection, communication management)
• TF Card (for data storage and firmware updates)

Key Features & Benefits:

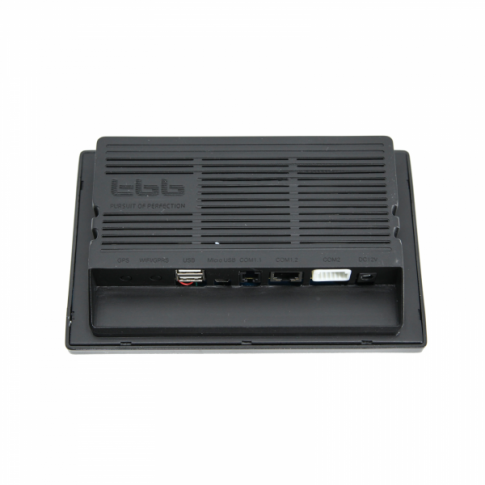

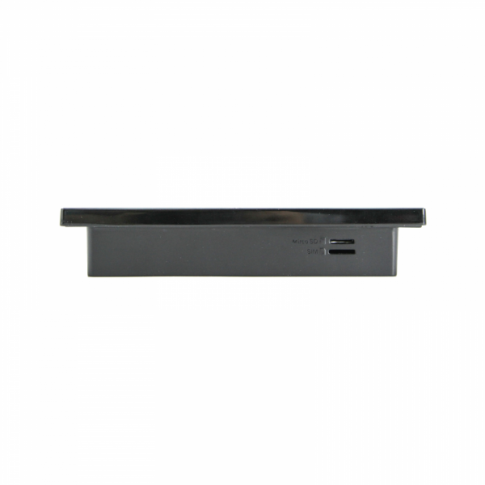

AMOY-A7 Monitor – smart control & intuitive display

• 7-Inch TFT Display (1024x600) for crisp, clear system visualization.
• Touchscreen interface allows easy control of connected devices like heaters, fridges, air conditioners, and generators.
• Android-based OS offers a flexible, user-friendly platform.
• Bluetooth connectivity supports seamless integration with the TBB mobile app.
• Multiple ports (USB, RS485, CAN) ensure broad compatibility.
• Easy install via spring fixture.

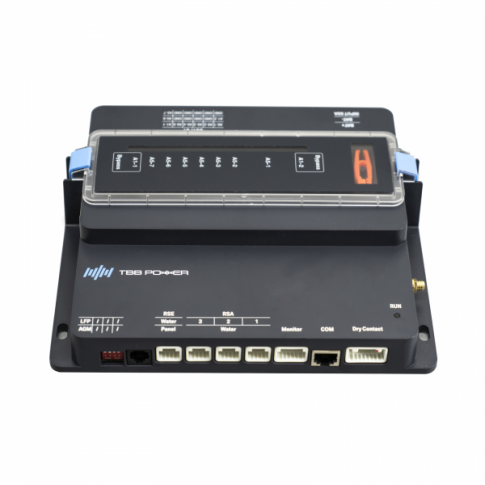

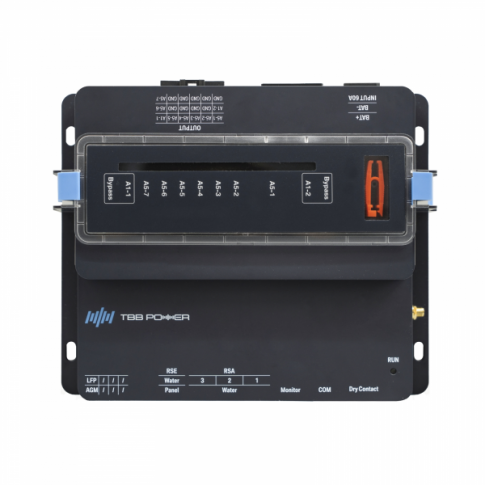

AMOY-CRS29 Distribution Module – efficient load management

• 9 Output channels (2 x A1-Class with bypass fuses, 7 x A5-Class with 15A fuses).
• Water level sensor integration and real-time LED indicators.
• Flexible control methods:
  • RF wireless switch panel compatibility (up to 12 panels).
  • RS485, CAN, and cascade control options.
  • PCU integration for centralized control.
• Advanced safety features:
  • Reverse polarity protection.
  • Input over-voltage protection.
  • Fuse open-circuit alarms.
• Dry contact outputs and programmable logic support custom setups.

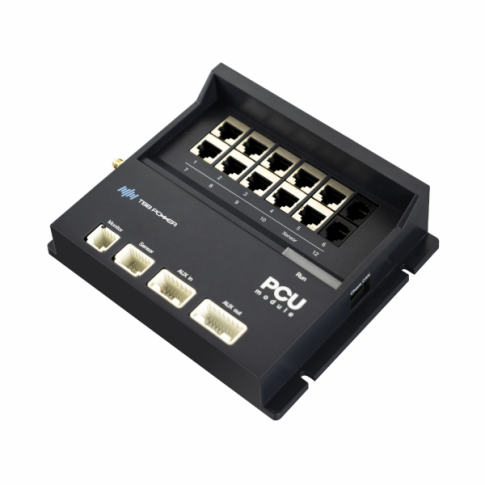

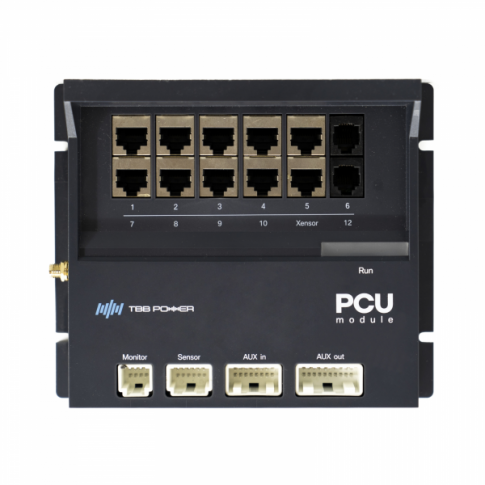

AMOY-PCU Control Unit – intelligent system orchestration

• Central power coordination: Manages power ON/OFF sequence, charging, discharging, and system protection.
• Dual power source support (12V & 48V leisure batteries, 12V starter).
• Low power mode: Ultra-low 5mA standby with dry contact wake-up.
• Isolated power supply for stable AMOY-A7 performance.
• Robust communication:
  • 3 x CAN (2 non-isolated, 1 isolated)
  • 2 x RS485 (internal/external)
  • 1 x LIN, Bluetooth Master, RF, and cascade communication.
• Firmware upgrade & error reporting via AMOY-A7 interface.

Applications:

• Recreational vehicles (RVs).
• Commercial transport.
• Marine vessels.
• Off-grid mobile energy systems.

Why choose the AMOY-KIT?

With seamless integration between the monitor, distribution module, and control unit, the AMOY-KIT delivers a reliable, scalable, and user-friendly energy management solution. From remote app control to smart energy distribution and system protection, this all-in-one kit empowers users with complete control and insight.

Click on the 'Details and Specifications' tab for more information about this product.

AMOY-A7 specifications:

• Dimensions: 180 x 115 x 33.8 mm

AMOY-CRS29 specifications:

• Operating voltage: 9 - 16V (12V system) / 16 - 32V (24V system)
• Total output current: 60A
• Single output current: <10A
• Number of output channels: 2 x A1-class and 7 x A5-class
• Number of switch inputs: 6
• Number of dry contact outputs: 4
• Communication methods: RF, CAN, and RS485
• Water level sensor inputs: 1 x RSE and 3 x RSA
• Operating temperature: from -20℃ to +60℃
• Dimensions: 220 x 182 x 52.1 mm

AMOY-PCU specifications:

• Source battery rated power: 12V @2A
• Source battery voltage range: 10.5 - 16V
• Target battery rated power: 12V @2A or 48V @0.6A
• Idle current: 5mA
• Operating temperature: from -20℃ to +65℃
• Rating: IP20
• Dimensions: 162 x 134 x 43 mm
• Weight: 0.5 kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TBB Power AMOY A7 LCD Monitor (AMOY-A7)

User manual for TBB Power AMOY CRS29 distribution module (AMOY-CRS29)

User manual for TBB Power AMOY PCU control unit (AMOY-PCU)
