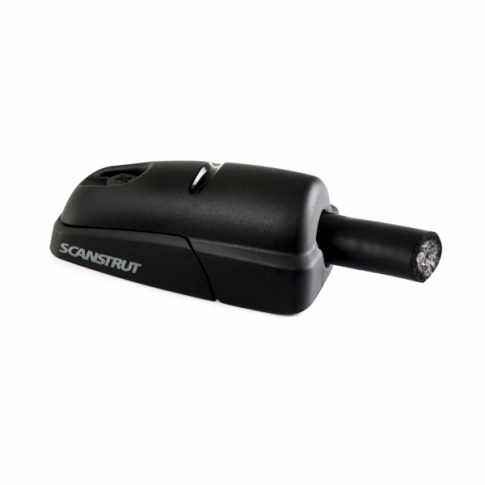

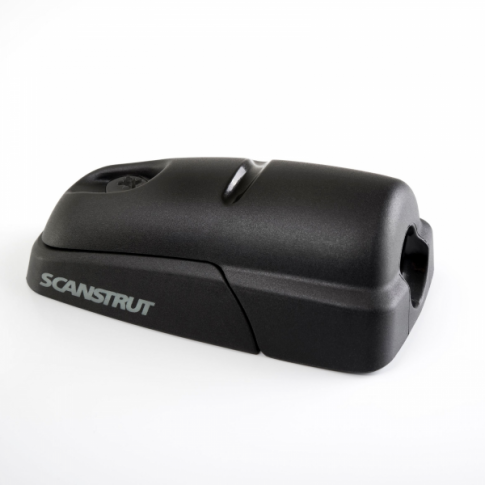

The Scanstrut DS-H10-BLK is a premium horizontal cable seal designed for secure and waterproof cable entry, perfect for solar panels, light bars, lighting fixtures, and other rooftop electronic equipment. With a wide cable compatibility range of 6–10mm, this low-profile unit ensures quick installation and long-term performance in even the toughest environments.

Key Features:

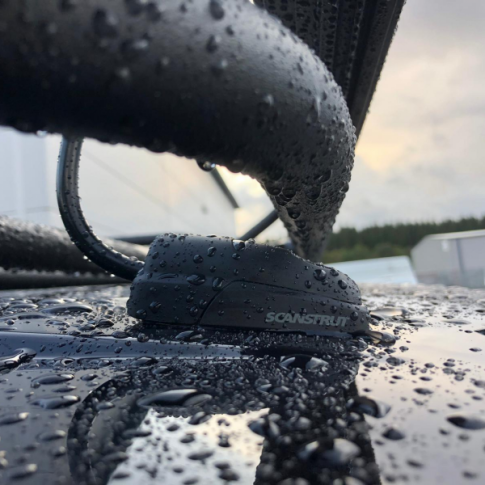

• IP68 Rated – Guaranteed 100% watertight seal for complete protection
• UV-Stable High-Impact Plastic – Durable, hard-wearing, and marine-grade
• Quick & Easy Installation – Captive nuts for fast, secure mounting
• Clean Finish – No messy sealant required on bungs
• Flexible Bung Options – Includes both pre-drilled and blank self-drill bungs
• Low-Profile Design – Impact-resistant and discreet on any surface

What’s Included:

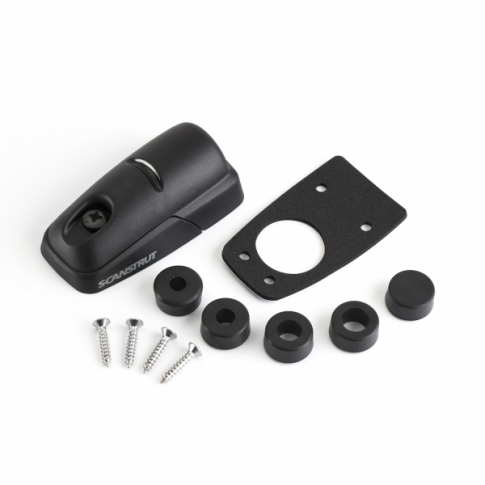

• 1 x Scanstrut DS-H10-BLK Cable Seal
• 6 x Bungs (6mm, 7mm, 8mm, 9mm, 10mm, Self-Drill)
• Fixing hardware and installation instructions

Applications:

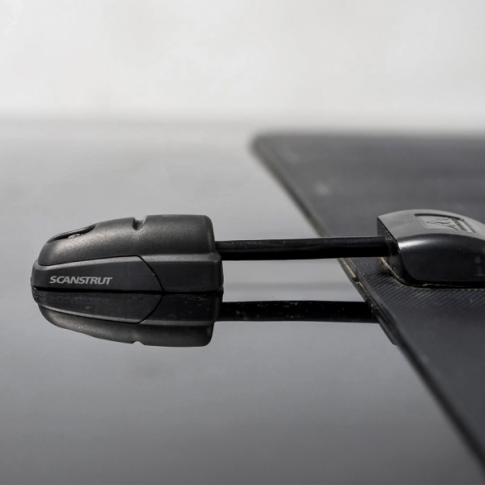

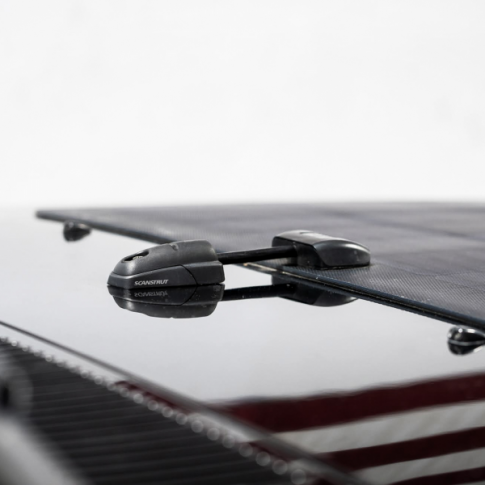

• Solar panels

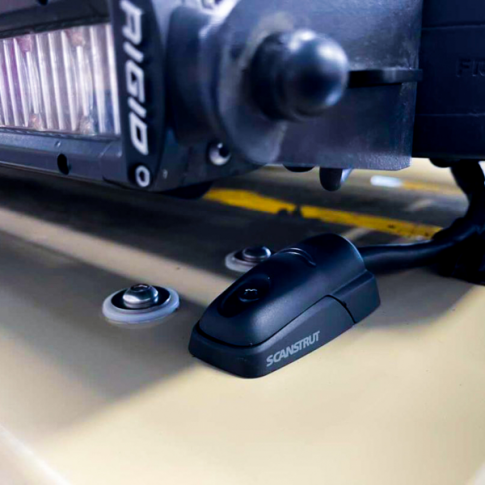

• LED light bars
• Marine & vehicle rooftop electronics
• Outdoor lighting setups

Click on the Details and Specification tabs for more information.

Specifications:

• Material: UV-Stable High-Impact Plastic
• Seal Rating: IP68 (100% Watertight)
• Cable Diameter: 6–10mm
• Height: 27mm
• Length: 77.5mm
• Colour: Black

Please follow the installation instructions in the Documents tab.

The following documents are available to download:

Installation instructions for the DS-H10-BLK

Technical drawing of the DS-H10-BLK
