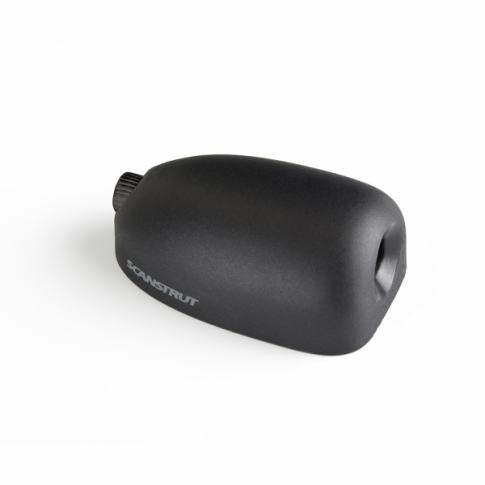

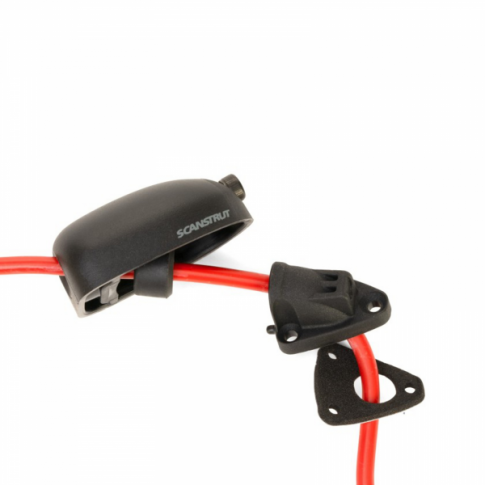

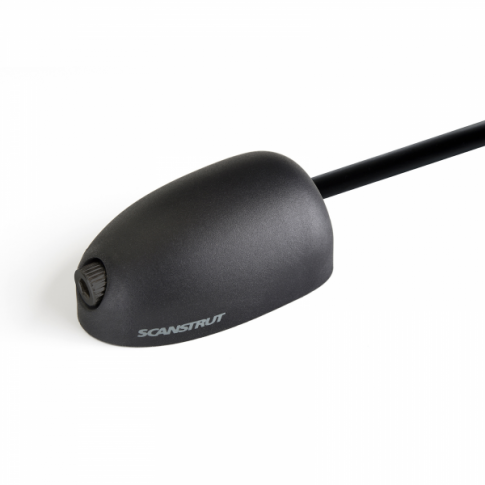

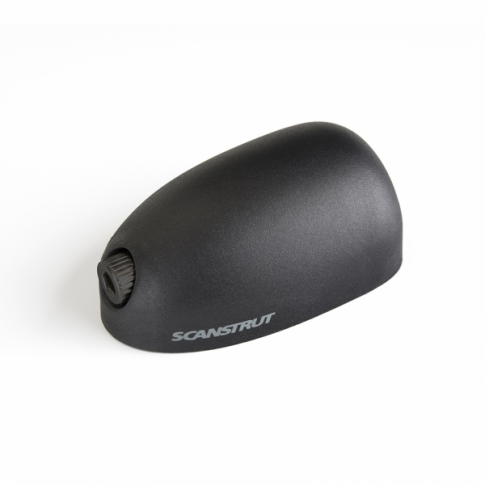

The Scanstrut DS-H6-BLK is a premium horizontal cable seal designed for secure and waterproof cable entry, perfect for solar panels, light bars, lighting fixtures, and other rooftop electronic equipment. With a wide cable compatibility range of 2-6mm, this low-profile unit ensures quick installation and long-term performance in even the toughest environments.

Key Features:

• IP68 Rated – Guaranteed 100% watertight seal for complete protection
• UV-Stable High-Impact Plastic – Durable, hard-wearing, and marine-grade
• Quick & Easy Installation – Captive nuts for fast, secure mounting
• Clean Finish – No messy sealant required on bungs
• Flexible Bung Options – Includes both pre-drilled and blank self-drill bungs
• Low-Profile Design – Impact-resistant and discreet on any surface

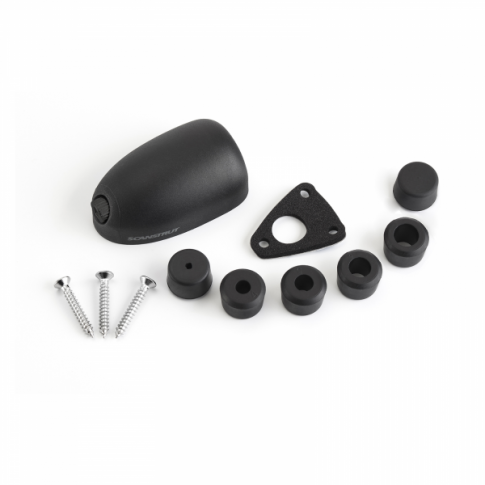

What’s Included:

• 1 x Scanstrut DS-H6-BLK Cable Seal
• 6 x Bungs (2mm, 3mm, 4mm, 5mm, 6mm, Self-Drill)
• Fixing hardware and installation instructions

Applications:

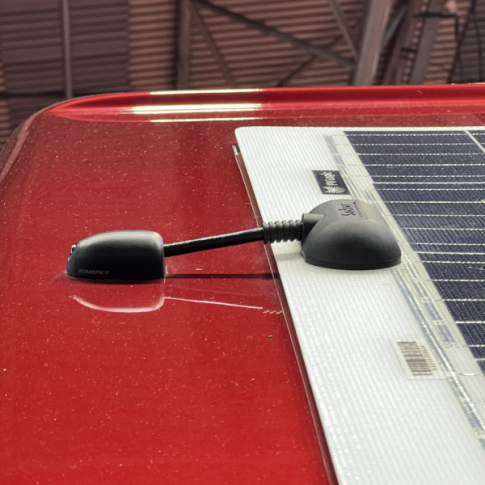

• Solar panels
• LED light bars
• Marine & vehicle rooftop electronics
• Outdoor lighting setups

Click on the Details and Specification tabs for more information.

Specifications:

• Material: UV-Stable High-Impact Plastic
• Seal Rating: IP68 (100% Watertight)
• Cable Diameter: 2-6mm
• Height: 20mm
• Length: 46mm
• Colour: Black

Please follow the installation instructions in the Documents tab.

The following documents are available to download:

Installation instructions for the DS-H6-BLK

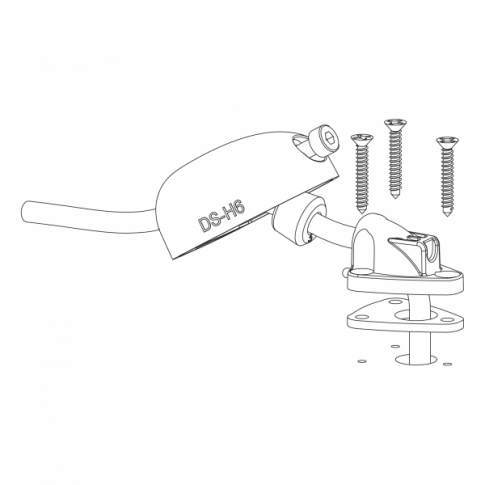

Technical drawing of the DS-H6-BLK
