Scanstrut DS6-P Vertical Cable Seal – IP68 Waterproof Gland for 2-6mm Cables, UV-Stable Plastic - Grey
Phone order?
Call our number
0203 150 1111
and quote the product code below
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm

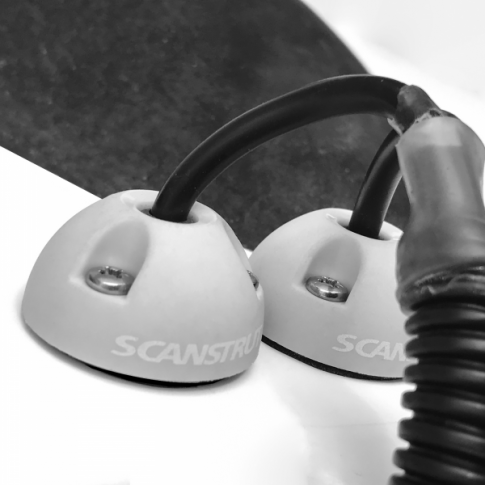

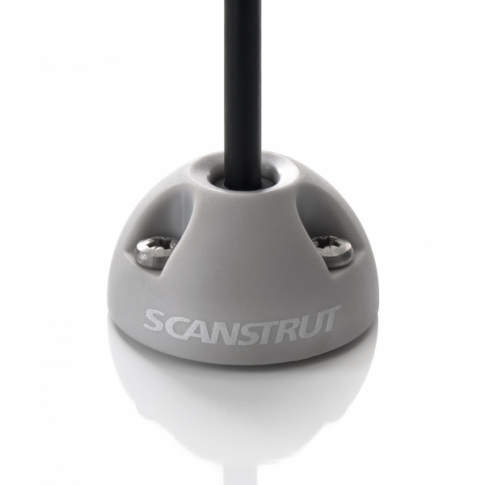

The Scanstrut DS6-P is a compact vertical entry cable seal, ideal for routing cables from 2–6mm through decks, roofs, or panels. Its dome-shaped profile not only offers a sleek, low-profile finish but also improves impact resistance and water shedding. Designed for reliable, watertight performance in marine, vehicle, and outdoor installations.
Key Features:

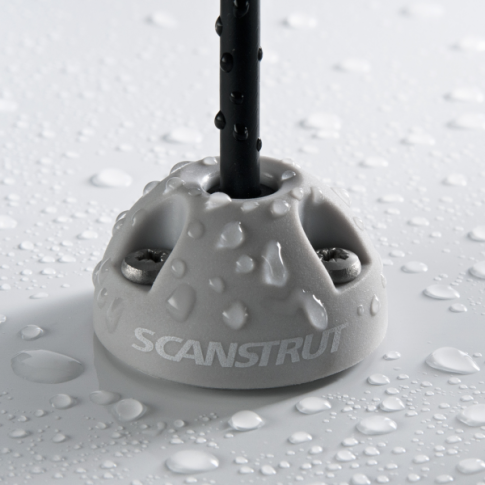

- IP68 Rated – Guaranteed 100% watertight seal for complete protection
- Compact Dome Design – Low-profile, impact-resistant, and discreet
- UV-Stable High-Impact Plastic – Durable and marine-grade construction
- Quick & Easy Installation – Captive nuts for secure, repeatable assembly
- Clean Finish – No messy sealant required on bungs
- Flexible Bung Options – Includes both pre-drilled and self-drill bungs
- Includes 316 Stainless Steel Fixings & 3M Gasket – For long-lasting performance

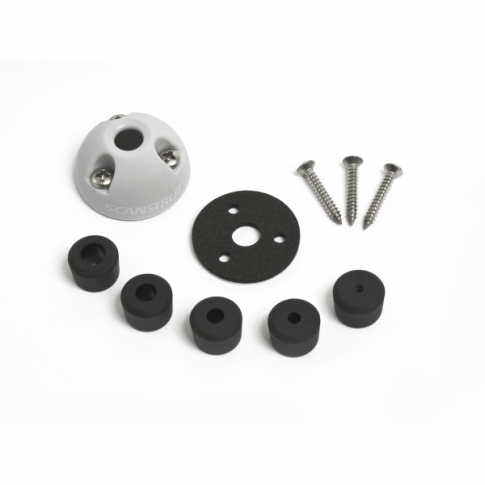

What’s Included:
- 1 × Scanstrut DS6-P Vertical Cable Seal
- 6 × Bungs (2mm, 3mm, 4mm, 5mm, 6mm, Self-Drill)
- 316 stainless steel fixings
- Waterproof 3M gasket
- Installation instructions
Applications:
- Small solar panel cables
- Antenna or GPS wires

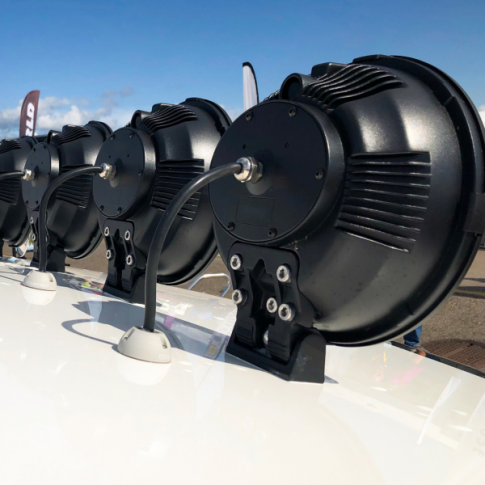

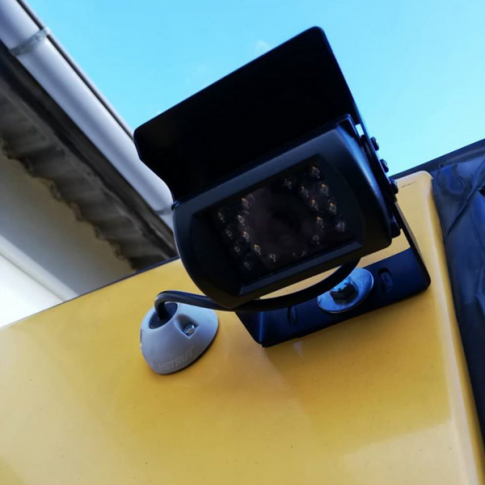

- Lighting and sensor cables

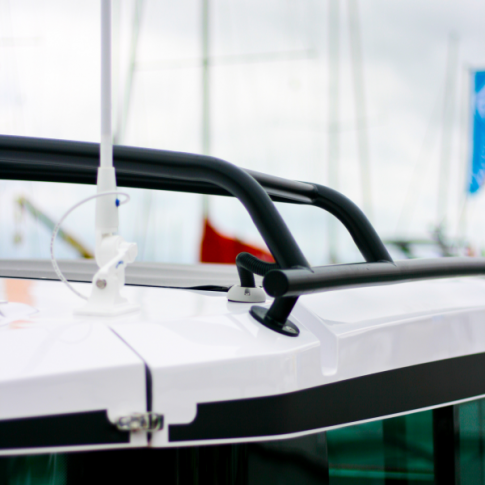

- Marine, campervan, and outdoor setups
Click on the Details and Specification tabs for more information.
Specifications:
- Material: UV-Stable High-Impact Plastic
- Seal Rating: IP68 (100% Watertight)
- Cable Diameter: 2-6mm
- Height: 19mm
- Diameter of cable seal: 30mm
- Colour: Grey
Please follow the installation instructions in the Documents tab.
