Mounting accessories

Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey

Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey
Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey
Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey
Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey
Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey
Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey
Scanstrut DS16-P Vertical Cable Seal – IP68 Waterproof Gland for 2-8mm Cables, UV-Stable Plastic - Grey

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
DS16-P
Ex. VAT £19.99
Inc. VAT £23.99
Availability:
Out of stock
Add to shopping cart

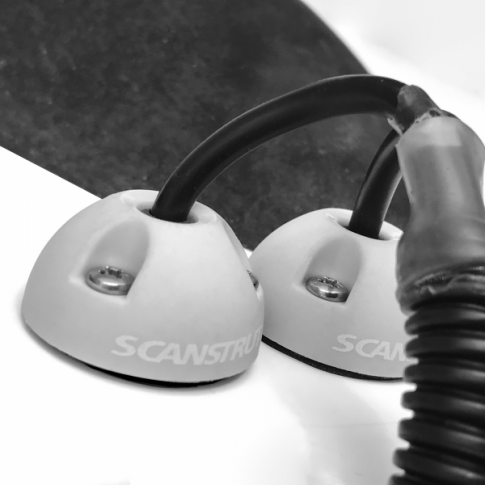

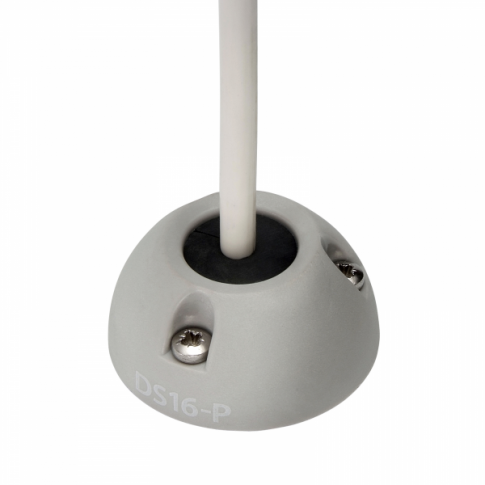

The Scanstrut DS16-P is a compact vertical entry cable seal, ideal for routing cables from 2–8mm through decks, roofs, or panels. Its dome-shaped profile not only offers a sleek, low-profile finish but also improves impact resistance and water shedding. Designed for reliable, watertight performance in marine, vehicle, and outdoor installations.

Key Features:

  • IP68 Rated – Guaranteed 100% watertight seal for complete protection
  • Compact Dome Design – Low-profile, impact-resistant, and discreet
  • UV-Stable High-Impact Plastic – Durable and marine-grade construction
  • Quick & Easy Installation – Captive nuts for secure, repeatable assembly
  • Clean Finish – No messy sealant required on bungs
  • Flexible Bung Options – Includes both pre-drilled and self-drill bungs
  • Includes 316 Stainless Steel Fixings & 3M Gasket – For long-lasting performance

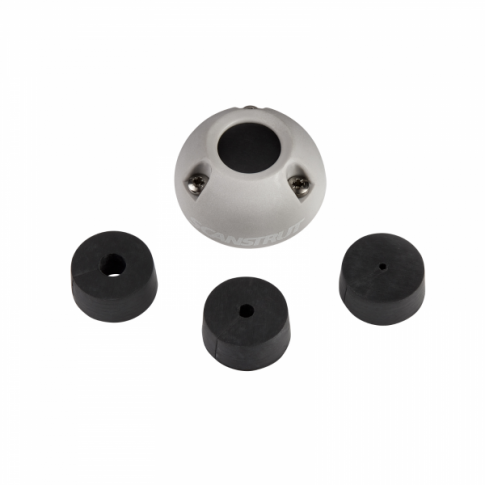

What’s Included:

  • 1 × Scanstrut DS16-P Vertical Cable Seal
  • 4 × Bungs (3mm, 4mm, 7mm, Self-Drill)
  • 316 stainless steel fixings
  • Waterproof 3M gasket
  • Installation instructions



Applications:

  • Small solar panel cables

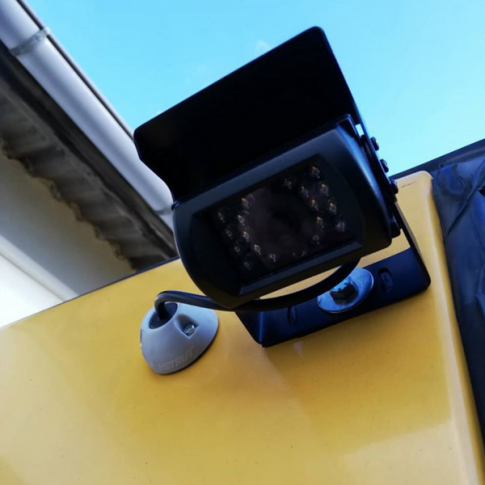

  • Antenna or GPS wires

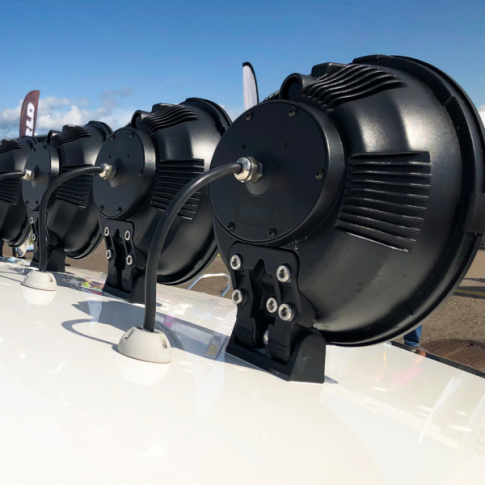

  • Lighting and sensor cables
  • Marine, campervan, and outdoor setups



Click on the Details and Specification tabs for more information.





Specifications:

  • Material: UV-Stable High-Impact Plastic
  • Seal Rating: IP68 (100% Watertight)
  • Cable Diameter: 2-8mm
  • Height: 19mm
  • Diameter of cable seal: 39mm
  • Colour: Grey







Please follow the installation instructions in the Documents tab.



The following documents are available to download:

Installation instructions for the DS16-P

Technical drawing of the DS16-P
