Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power electronics. Victron Energy inverters have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

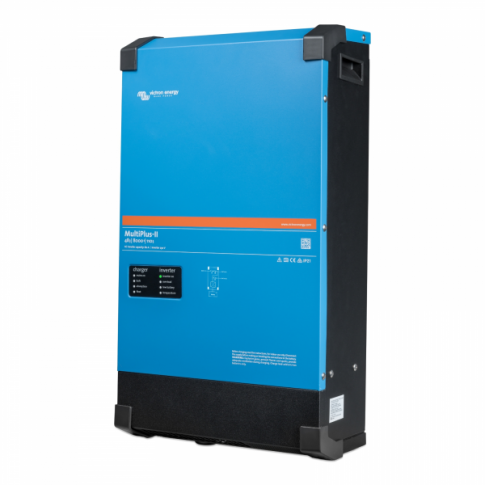

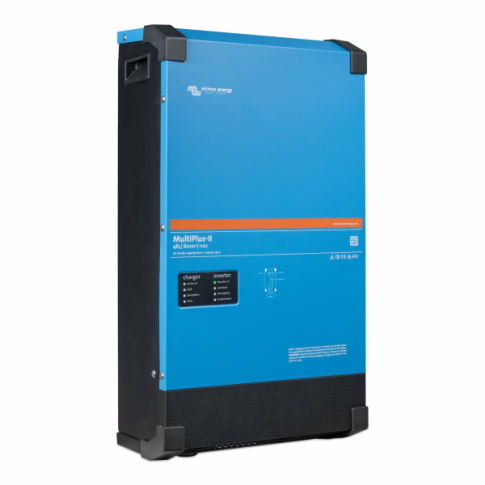

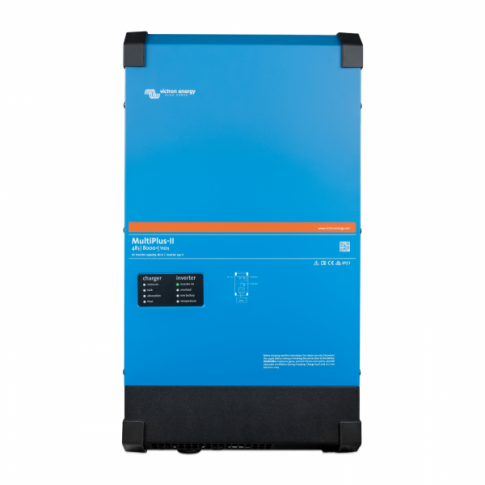

The 48/8000/110-100 MultiPlus-II intelligently combines the functions of a powerful 8000VA 48V pure sine wave inverter, a sophisticated 110A battery charger which features adaptive charge technology, and a high-speed 100A AC transfer switch in one single unit. This makes the MultiPlus-II ideal for applications with limited space, and allows you to have a more compact and easy-to-troubleshoot system, especially since using the MultiPlus-II will require fewer cables compared to using separate units (i.e., separate inverter, battery charger, and AC transfer switch).

Key functions:

1. 8000VA 48V pure sine wave inverter: Converts DC current into 230VAC mains electricity to run a wide variety of household and professional appliances such as TVs, computers, lighting, power tools, fridges, and more. Capable of generating up to 6400W of continuous power with a strong peak power handling capability of 15,000W (to start demanding appliances such as pumps, compressors, or motors). As a pure sine wave inverter, it delivers superior performance compared to modified sine wave models, ensuring high efficiency and full compatibility with sensitive electronics.

2. Adaptive 110A 4-stage smart battery charger (bulk – absorption – float – storage): Designed to provide safe and efficient unattended charging of 48V battery banks. Its microprocessor-controlled adaptive charging system can be tailored for various battery types, while automatically optimising the charging process based on usage.

3. Uninterruptible Power Supply (UPS): The inverter/charger includes a high-speed 100A AC transfer switch. In the event of a power failure, or when shore or generator power is disconnected, the inverter instantly takes over the supply of connected loads. The switchover is so rapid (less than 20 milliseconds) that even sensitive electronics, such as computers, continue to operate without interruption.

Additional intelligent features:

The MultiPlus-II has all the features of the standard MultiPlus inverter/chargers, plus an external current sensor option which extends the PowerControl and PowerAssist functions and optimises self-consumption (external current sensor not included). Furthermore, the MultiPlus-II has an auxiliary AC output (AC-out-2) intended for non-critical loads; the equipment connected to AC-out-2 may only operate if AC input voltage is available, and is disconnected immediately when the MultiPlus-II switches to battery operation (i.e., inverter mode).

In addition to the above, the MultiPlus-II offers several additional features and customisable settings that provide a range of useful applications and enhanced functionality; these include but are not limited to:

• PowerControl: This feature allows the user to set the maximum AC input current to be drawn by the MultiPlus-II, for the battery charger and the connected AC loads consumption, and gives priority to the AC loads. This way, the MultiPlus-II prioritises the power/current supply to the connected AC appliances, and whatever current is “left over” is used to charge the batteries. This keeps your system from overloading the AC supply (e.g., generator or shore supply) and prevents the circuit breaker from tripping. This feature requires the Multi Control Panel (not included).

• PowerAssist: This feature allows the MultiPlus-II to supplement the capacity of the AC power source. Meaning, in the case of the AC appliances requiring more current than the AC source can supply, the MultiPlus-II’s bidirectional converter operates as an inverter, in parallel with the AC input, and provides additional current from the battery to meet the AC load current demand. Once this demand decreases, the spare power from the AC source is used to recharge the battery/battery bank. In applications where peak power is required only for a limited period, the PowerAssist feature allows you to use a smaller generator to power your equipment; or, alternatively, it allows more to be achieved from a limited shore.

• Programmable relay: The MultiPlus-II is equipped with a programmable relay which can be programmed for all kinds of applications, such as providing a start/stop signal to a generator. By default, the programmable relay is set as an alarm relay; i.e., the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

• Parallel and 3-phase operation capability: The MultiPlus-II can be connected in parallel with several identical devices (up to 6) to achieve higher power output. Operation in 3-phase wye (Y) configuration is also possible. A standard RJ45 UTP cable is required for parallel and 3-phase operation (not included). Please note: This model can only be paralleled when using an external AC transfer switch.

• Inbuilt safety protection: The MultiPlus-II offers complete protection against potential hazards such as output short circuit, overload, battery overvoltage & undervoltage, overheating, 230 VAC on inverter output (e.g., from another AC source), and input voltage ripple that is too high.

• WeakAC: Strong distortion of the input voltage can result in the charger hardly operating or not operating at all. If WeakAC is turned on, the charger will also accept a strongly distorted voltage, at the cost of greater distortion of the input current.

• BatterySafe mode: If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, damage due to excessive gassing will be prevented by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

• The Storage mode: The Storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage mode float voltage is reduced to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to “equalise” the battery. This feature prevents stratification of the electrolyte and sulphation, 2 major causes of early battery failure.

• Bulk protection: When this setting is turned on, the bulk charging time is limited to 10 hours. A longer charging time could indicate a system error (e.g., a battery cell short circuit).

• Temperature compensation: The temperature sensor (supplied with the product) serves to reduce charging voltage when battery temperature rises. This is particularly important for maintenance-free batteries, which could otherwise dry out by overcharging.

• Remote monitoring and control: When coupled with a GX device (e.g., Cerbo GX Mark 2) you can monitor and control your MultiPlus-II and your system locally (via the local LAN/Wi-Fi network) or remotely via the internet from anywhere in the world, using the free VRM app or the free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems.

Click on the Details and Specifications tab for more information.

Inverter:

• Input voltage range: 38 - 66 V
• Output voltage & frequency: 230 VAC ± 2% @ 50Hz ± 0.1% (can be adjusted to 240 VAC @ 60Hz)
• Cont. output power at 25°C: 8000 VA (i.e., 6400W)
• Peak power: 15000W
• Maximum efficiency: 95%
• Zero-load power: 29W

Charger:

• AC input voltage range: 187 - 265 VAC (45 - 65 Hz)
• Charge voltage 'absorption': 57.6V
• Charge voltage 'float': 55.2V
• Storage mode: 52.8V
• Charge current house battery: 110A

General:

• Transfer switch: 100A
• Auxiliary output: Yes (50A)
• External AC current sensor (optional): 100A
• Operating temperature range: -40 to +65 °C (fan assisted cooling)
• Humidity (non-condensing): max 95%

Enclosure:

• Protection category: IP22

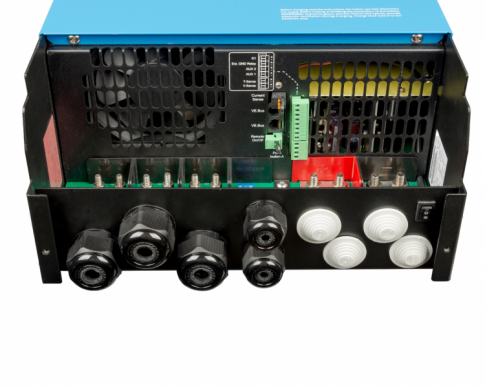

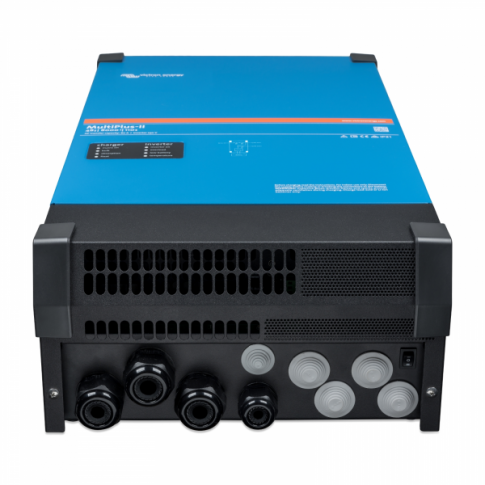

• Battery connection: Four M8 bolts (two positive and two negative)
• 230 VAC connection: Bolts M6
• Weight: 41.2kg
• Dimensions (h x w x d): 642 x 363 x 206 mm

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

This inverter/charger comes with a detailed user manual (see Documents tab) which explains wiring, installation and operations.

Please note that this inverter/charger is not supplied with cables. Detailed recommendations for cable length and thickness are available in the user manual.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for Victron MultiPlus-II inverter/charger 48/8000/110-100 230V (VMPLUS-II-48-8000)

Datasheet for Victron MultiPlus-II inverter/charger 48/8000/110-100 230V (VMPLUS-II-48-8000)
