Mounting accessories

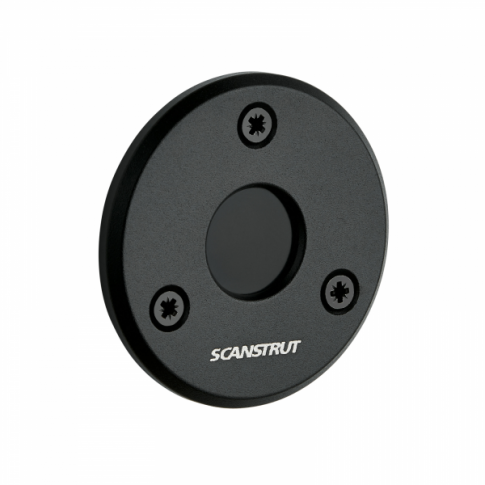

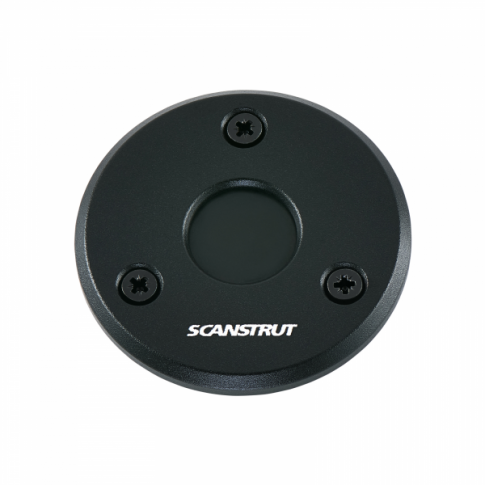

Scantrut DS-LP-16-BLK Low Profile Black Cable Seal for single cables 2-8mm and connectors up to 16mm - Anodised Aluminium
Phone order?
0203 150 1111
and quote the product code below
The Scanstrut DS-LP-16-BLK is a compact, low-profile cable seal designed to route a single cable from 2–8mm in diameter with connectors up to 16mm. Engineered for outdoor and marine environments, it delivers a sleek, flush finish while guaranteeing a 100% watertight IP68 installation. Constructed from premium black anodised aluminium, this cable seal offers superior corrosion resistance, UV stability, and long-term durability, making it ideal for solar, marine, and off-grid applications.
Key Features:
- IP68 Waterproof – Tested and approved for a 100% watertight seal

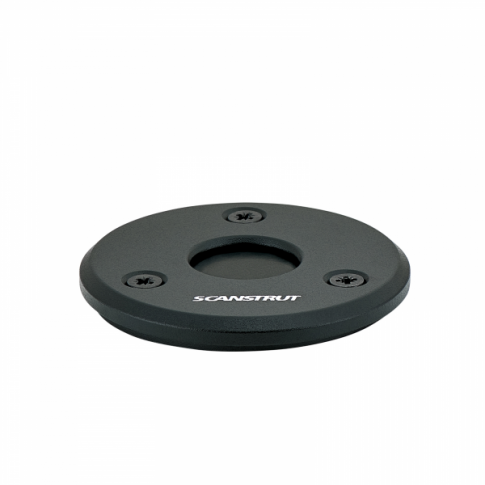

- Low-Profile Slimline Design – 73% lower mounting height than DS16-P-BLK for a cleaner look
- Premium Anodised Aluminium – Marine-grade durability with a refined black finish
- Cable Compatibility – Routes a single cable Ø2–8mm with connectors up to Ø16mm
- No Sealant Required – Closed-cell base gasket ensures a clean, tidy finish
- Flexible Installation – Supplied with multiple pre-drilled bungs plus a self-drill option
- Convenient Split-Seal Option – Allows installation without removing connectors
- Reliable & Repeatable – Captive nuts for easy, secure assembly and future adjustments

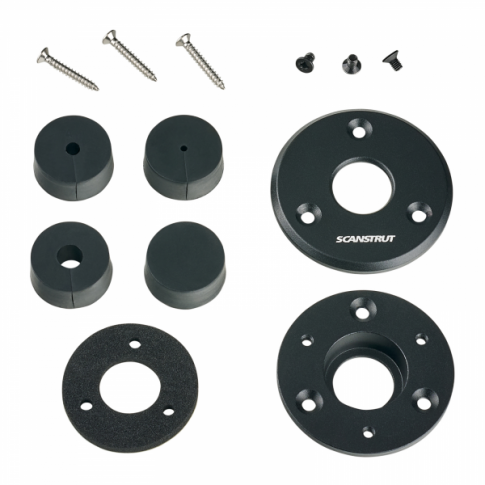

What’s Included:
- 1 × Scanstrut DS-LP-16-BLK Low Profile Cable Seal

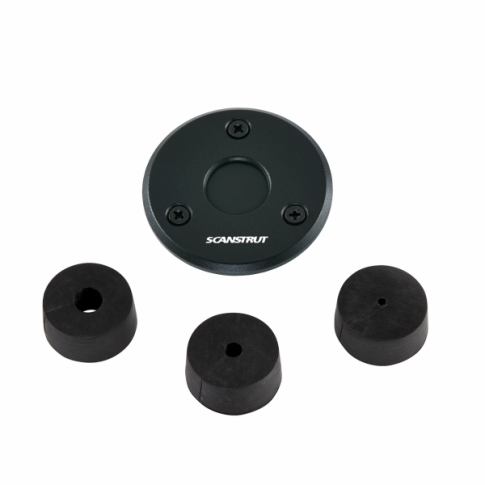

- 3 × Pre-drilled bungs (2mm, 4mm, 7mm)
- 1 × Self-drill (undrilled) bung
- Fixing hardware
- Closed-cell waterproof gasket
- Installation instructions
Applications:
- Solar panel cable routing
- Rooftop and vehicle electronics

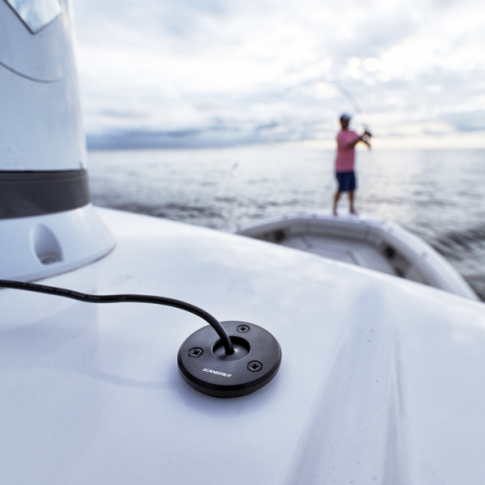

- Marine and deck systems
- Off-grid outdoor power setups
Click on the Details and Specification tabs for more information.
Specifications:
- Material: Black anodised aluminium
- Colour: Black
- Cable Seal Diameter: 49.9mm
- Max Cable Diameter: 2–8mm
- Max Connector Size: 16mm
- Max Cable Capacity: 1
- Bungs Included: 3 × pre-drilled (2mm, 4mm, 7mm), 1 × self-drill
Please follow the installation instructions in the Documents tab.
