Mounting accessories
Scanstrut DS-LP-21B-BLK Low Profile Black Cable Seal for single cables 9-14mm and connectors up to 21mm - Anodised Aluminium
Phone order?
0203 150 1111
and quote the product code below

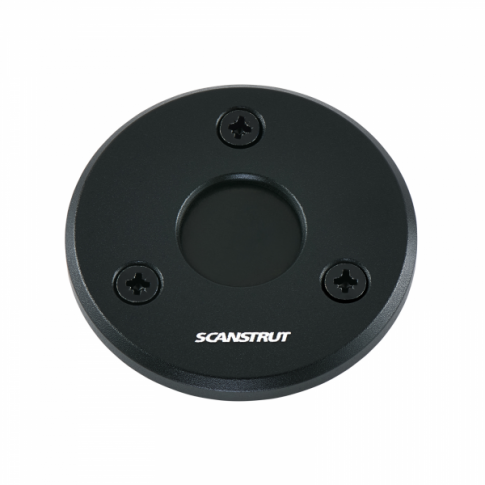

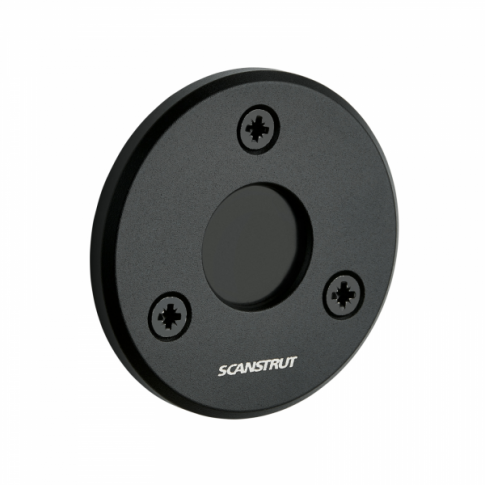

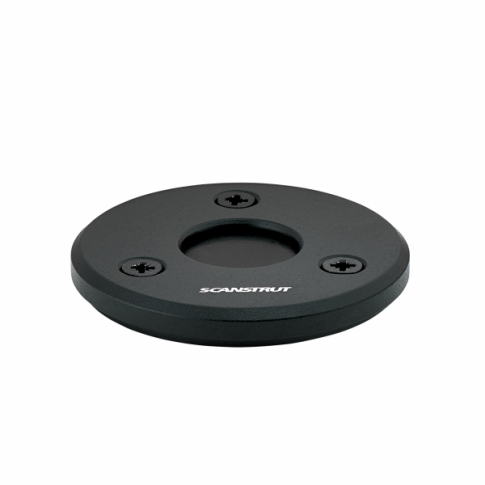

The Scanstrut DS-LP-21B-BLK is a compact, low-profile cable seal designed to route a single cable from 9-14mm in diameter with connectors up to 21mm. Engineered for outdoor and marine environments, it delivers a sleek, flush finish while guaranteeing a 100% watertight IP68 installation. Constructed from premium black anodised aluminium, this cable seal offers superior corrosion resistance, UV stability, and long-term durability, making it ideal for solar, marine, and off-grid applications.
Key Features:
- IP68 Waterproof – Tested and approved for a 100% watertight seal
- Low-Profile Slimline Design – 68% lower mounting height than DS21B-P-BLK for a cleaner look
- Premium Anodised Aluminium – Marine-grade durability with a refined black finish
- Cable Compatibility – Routes a single cable Ø9-14mm with connectors up to Ø21mm
- No Sealant Required – Closed-cell base gasket ensures a clean, tidy finish
- Flexible Installation – Supplied with multiple pre-drilled bungs plus a self-drill option
- Convenient Split-Seal Option – Allows installation without removing connectors
- Reliable & Repeatable – Captive nuts for easy, secure assembly and future adjustments

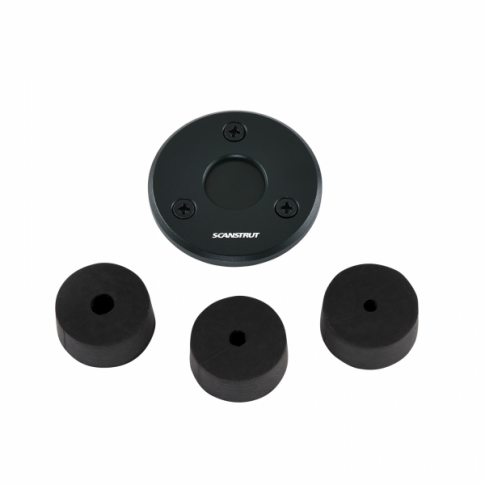

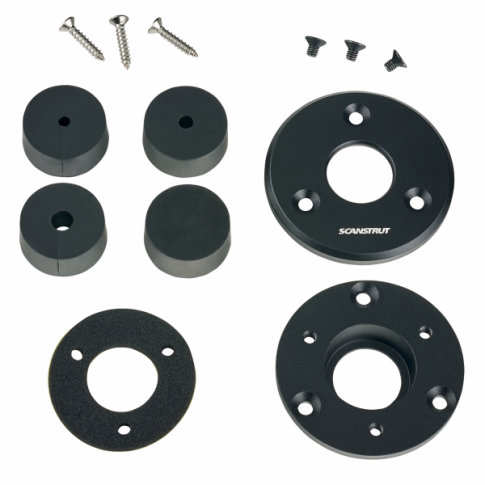

What’s Included:
- 1 × Scanstrut DS-LP-21A-BLK Low Profile Cable Seal
- 3 × Pre-drilled bungs (9mm, 11mm, 13mm)
- 1 × Self-drill (undrilled) bung
- Fixing hardware
- Closed-cell waterproof gasket
- Installation instructions

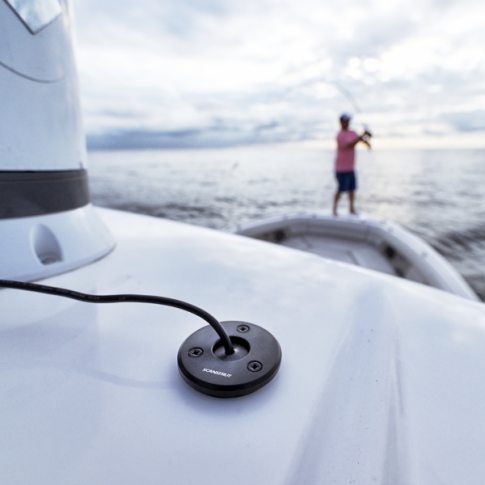

Applications:
- Solar panel cable routing
- Rooftop and vehicle electronics
- Marine and deck systems
- Off-grid outdoor power setups
Click on the Details and Specification tabs for more information.
Specifications:
- Material: Black anodised aluminium
- Colour: Black
- Cable Seal Diameter: 60.7mm
- Max Cable Diameter: 9-14mm
- Max Connector Size: 21mm
- Max Cable Capacity: 1
- Bungs Included: 3 × pre-drilled (9mm, 11mm, 13mm), 1 × self-drill
Please follow the installation instructions in the Documents tab.
