Product code:
SC-USB-F3
Ex. VAT £54.16
Inc. VAT £64.99
Availability:
Out of stock
Add to shopping cart

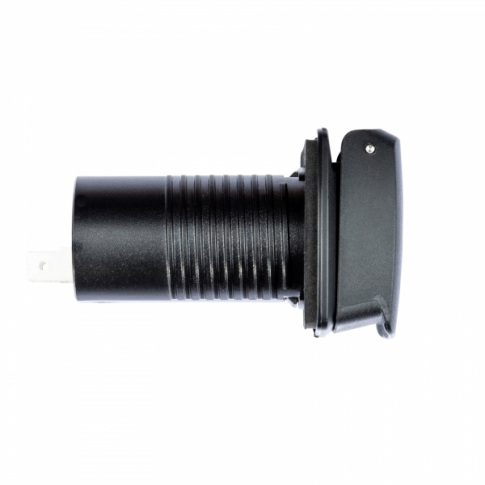

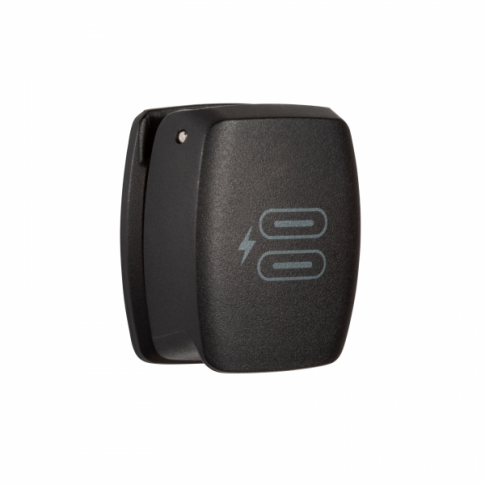

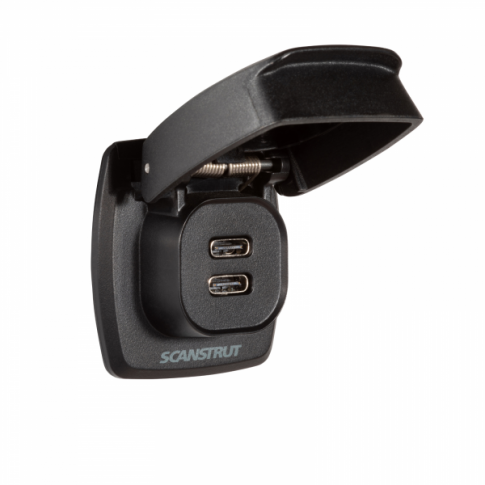

The Scanstrut Flip Pro Max (SC-USB-F3) delivers next-generation dual USB-C charging in a compact, waterproof design made for demanding marine and RV environments. Compatible with both 12V and 24V systems, it features 2 × 60W USB-C ports, providing the ultimate fast-charging solution for laptops, tablets, smartphones, and other high-powered devices onboard.

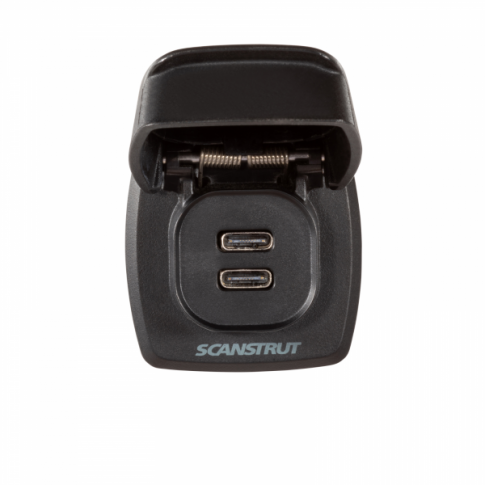

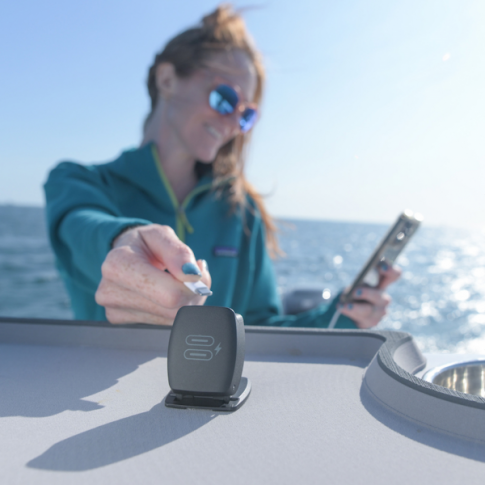

When not in use, the spring-loaded cap locks shut to protect against water and dust. When charging, it flips open and locks cables in securely—keeping them protected even in rough conditions. Built from premium marine-grade materials with a 316 stainless steel hinge, Flip Pro Max is IPX4 waterproof and washdown-ready, ensuring reliable performance in any environment.

Key Features:

  • Dual USB-C Ports – 2 × USB-C outputs for charging two devices at once
  • Ultra-Fast Charging – Up to 60W per port on 24V systems, perfect for laptops & tablets
  • Compact & Retrofit-Friendly – Installs easily using a Ø32mm hole saw, bezel included
  • IPX4 Waterproof – Sealed against spray and washdowns when cover is closed
  • Marine-Grade Construction – UV-resistant body, anti-corrosion coating, and 316 stainless hinge

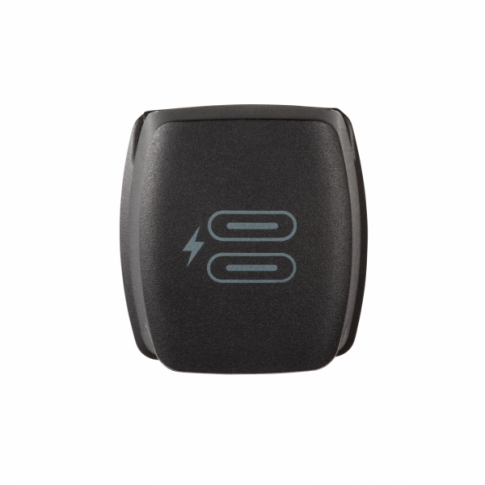

  • Spring-Loaded Cover – Locks shut for protection, locks open to secure charging cables
  • Universal Compatibility – Works with all USB-C devices, fast charging up to 2 at once



What’s Included:

  • 1 × Scanstrut SC-USB-F3 Flip Pro Max USB-C Charger
  • Mounting hardware

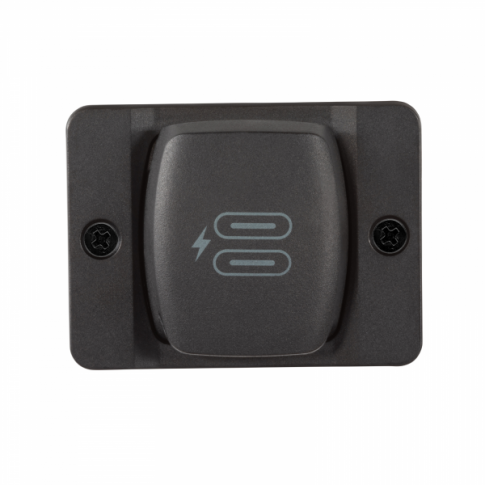

  • Optional front-fit bezel
  • Installation instructions



Applications:

  • USB-C laptops and ultrabooks
  • Tablets and smartphones
  • Drones, action cameras, and GPS units

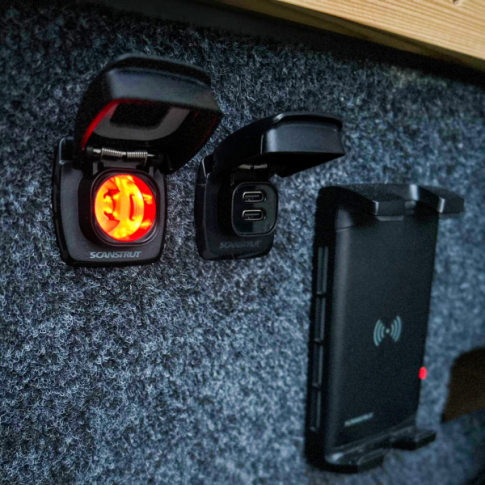

  • Marine, campervan & RV 12V/24V systems



Click on the Details and Specification tabs for more information.





Specifications:

  • Input Voltage: 10–32V DC (12V/24V systems)
  • USB-C Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
  • USB-C Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
  • Max Input Current: 6A (10A fuse recommended)
  • Standby Power Draw: 0.01W
  • Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE







Please follow the installation instructions in the Documents tab.



The following documents are available to download:

Installation instructions for the SC-USB-F3

Technical drawing of the SC-USB-F3
