Scanstrut SC-USB-F4 Flip Pro Plus Fast Charging USB-A and USB-C Socket – 12V/24V Marine & RV Waterproof Fast Charger
Phone order?
0203 150 1111
and quote the product code below

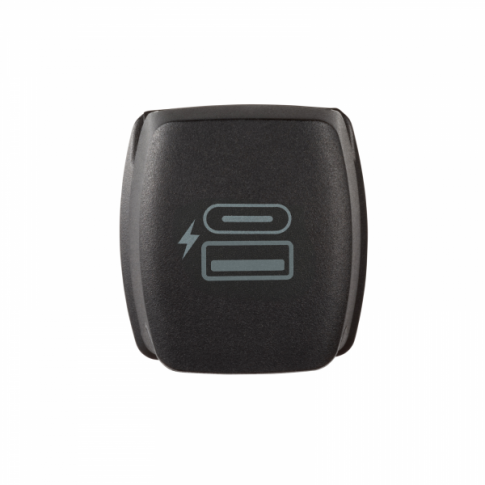

The Scanstrut Flip Pro Plus (SC-USB-F4) is the latest addition to the Flip Pro range, combining both USB-A and USB-C outputs in one compact, waterproof unit. Designed for use with 12V and 24V systems, it delivers rapid, universal charging for modern devices—including laptops, tablets, and smartphones.

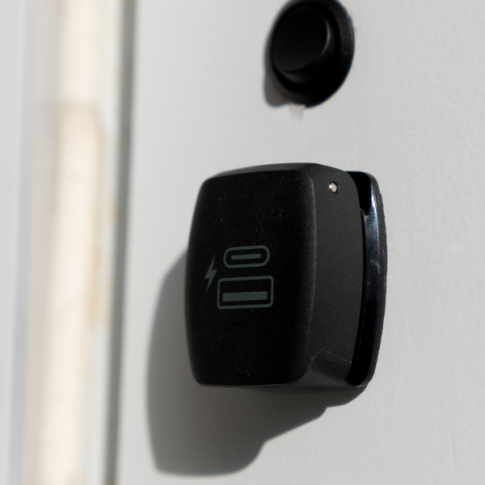

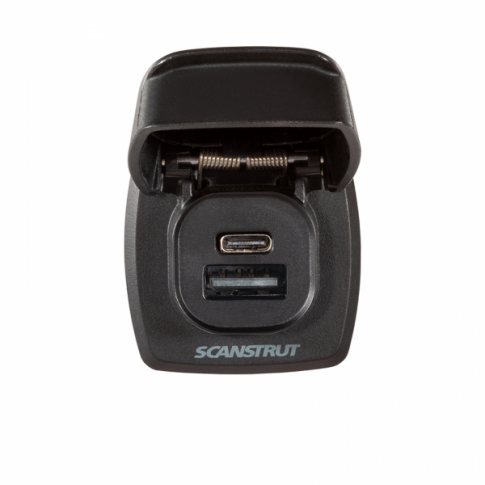

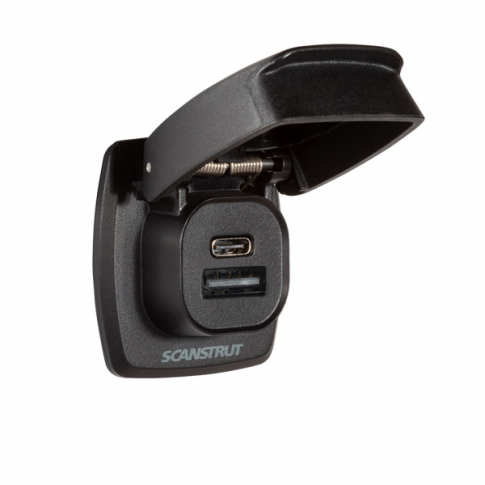

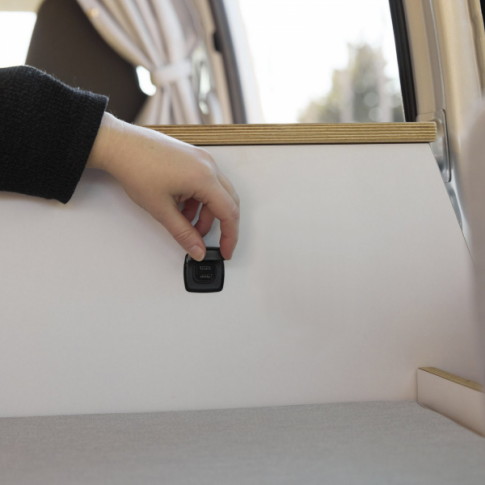

The redesigned form factor matches the sleek aesthetics of the Flip Pro range, ensuring a seamless look across your onboard charging points. The spring-loaded cover locks shut to protect against the elements and locks open when charging to keep cables secure.
Constructed from marine-grade, UV-resistant materials with a 316 stainless steel hinge and spring, the Flip Pro Plus is IPX4 waterproof and fully washdown-ready. With up to 60W USB-C power delivery and 36W USB-A output, it offers reliable, ultra-fast charging for up to two devices simultaneously.
Key Features
- Dual Ports – 1 × USB-C (60W @24V, 36W @12V) + 1 × USB-A (36W max)
- Fast Charging – Charge laptops, iPads, and phones at full speed, even simultaneously
- Compact & Retrofit-Friendly – Fits a Ø32mm hole, matches Flip Pro Max, Duo & Multi sockets
- IPX4 Waterproof – Washdown-ready with the cover closed
- Marine-Grade Build – UV resistant, anti-corrosion coating, 316 stainless hinge & spring

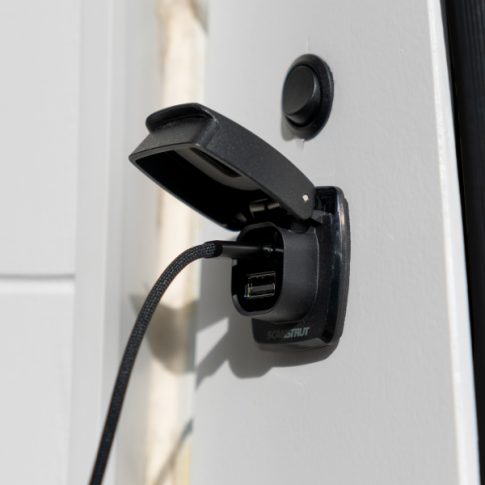

- Spring-Loaded Cover – Locks shut for protection, locks open to secure cables
- Universal Compatibility – Works with all USB-A and USB-C devices, charging two at once
What’s Included
- 1 × Scanstrut SC-USB-F4 Flip Pro Plus Charger
- Mounting hardware

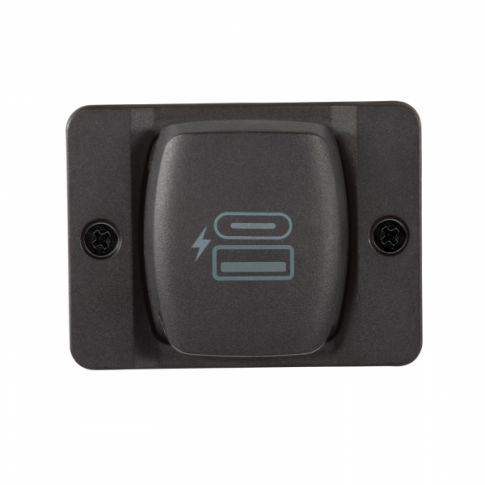

- Optional front-fit bezel
- Installation instructions
Applications
- Smartphones & tablets (iPad, iPhone, Android devices)
- USB-C laptops & ultrabooks
- Action cameras, drones & GPS units
- Marine, campervan & RV 12V/24V systems
Click on the Details and Specification tabs for more information.
Specifications:
- Input Voltage: 10–32V DC (12V/24V systems)
- USB-C Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
- USB-C Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
- USB-A Output (12V/24V system): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
- Max Input Current: 6A (10A fuse recommended)
- Standby Power Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
Please follow the installation instructions in the Documents tab.
