Sockets

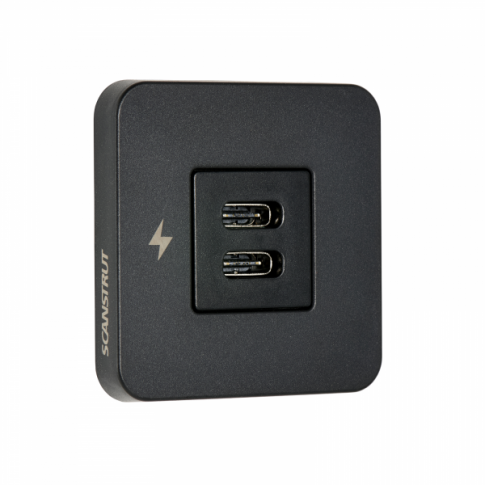

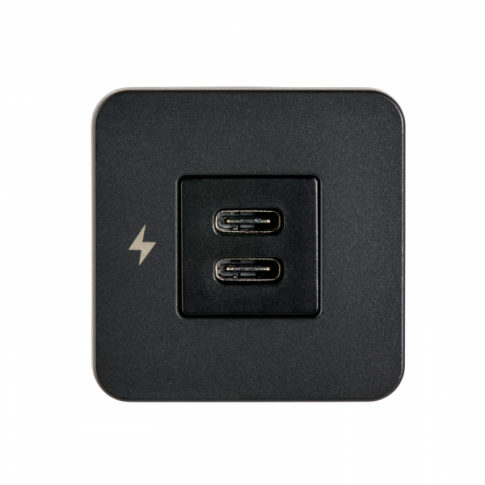

Scanstrut SC-TILE-20 Dual USB-C Interiors Charging Socket 12V/24V - Black Bezel
Phone order?
0203 150 1111
and quote the product code below
The Scanstrut SC-TILE-20 delivers discreet, high-speed dual USB-C charging in an ultra-low-profile design—ideal for upgrading modern marine interiors. With twin USB-C ports delivering up to 36W on 12V systems and 60W on 24V systems, it’s powerful enough to charge two laptops, tablets, or smartphones simultaneously.
Designed to blend seamlessly into luxury interiors, the SC-TILE-20 features a sleek matt black bezel and a compact 40mm footprint. Its front-fit installation makes upgrading quick and easy, while conformal-coated electronics add extra protection against interior moisture. A stylish and practical charging solution, purpose-built for onboard living spaces.
Please Note: TILE Series chargers are designed for interior use only and must not be installed in areas exposed to water.
Key Features
- Dual USB-C Ports – 2 × USB-C (up to 60W max each on 24V)
- Ultra-Fast Charging – Perfect for laptops, tablets, and smartphones
- Discreet Design – Ultra-low-profile bezel with a compact 40mm footprint
- Easy Installation – Fits a standard 29mm cut-out, front-fit mounting
- Interior Ready – Conformal-coated electronics for moisture resistance
- Modern Finish – Sleek matt black bezel (316 stainless option also available)
- Universal Compatibility – Works with all USB-C powered devices, charging two at once

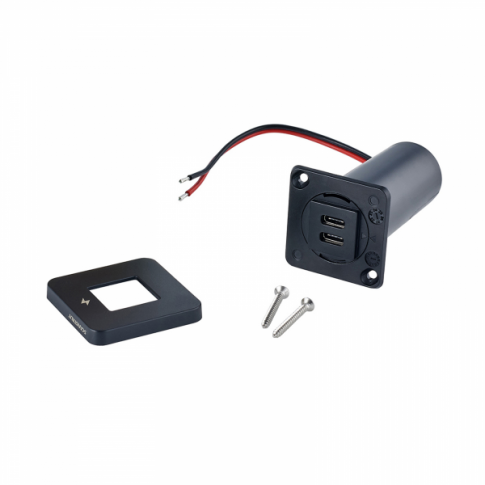

What’s Included
- 1 × Scanstrut SC-TILE-20 Dual USB-C Charger (Black Bezel)
- Mounting hardware
- Installation instructions
Applications
- USB-C laptops & ultrabooks
- Tablets & smartphones (iPad, iPhone, Android)
- Marine interior cabins & saloons
- Campervan & RV interiors
Click on the Details and Specification tabs for more information.
Specifications:
- Input Voltage: 10–32V DC (12V/24V systems)
- USB-C Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
- USB-C Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
- Max Input Current: 6A (10A fuse recommended)
- Standby Power Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
Please follow the installation instructions in the Documents tab.
