Sockets

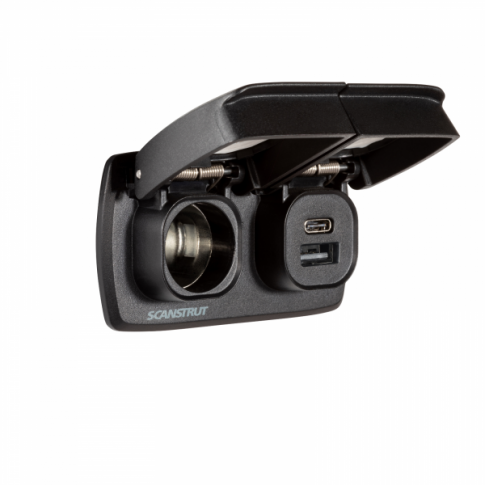

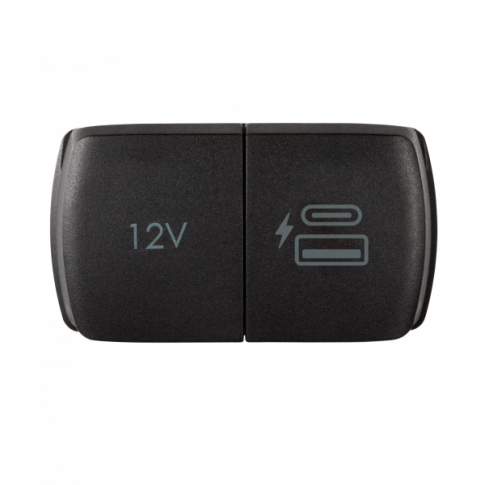

Scanstrut SC-MULTI-F2 Flip Pro Duo USB-A, USB-C and 12V Power Socket – 12V/24V Marine & RV Waterproof Fast Charger
Phone order?
0203 150 1111
and quote the product code below

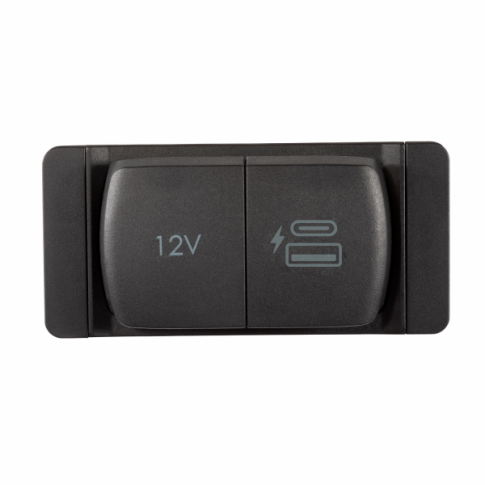

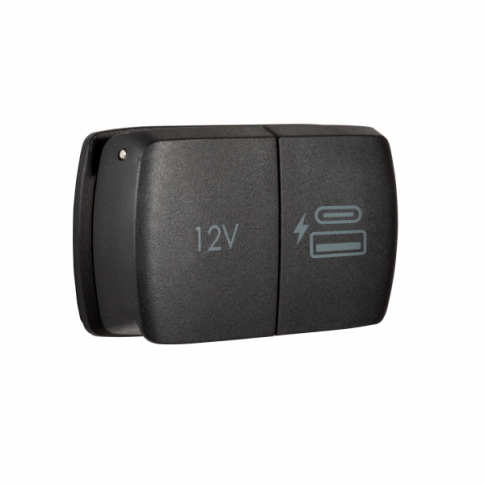

The Scanstrut Flip Pro Duo (SC-MULTI-F2) delivers powerful, reliable onboard charging with dual USB-A and USB-C ports in one compact, marine-ready unit. Offering up to 60W USB-C fast charging alongside a high-speed USB-A outlet, it’s the perfect solution for powering laptops, tablets, phones, and other devices at sea or on the road.
Built for harsh outdoor environments, the Flip Pro Duo features spring-loaded protective caps that stay tightly closed when not in use—keeping the unit IPX4 waterproof and fully washdown-ready. With UV-resistant housing, 316 stainless steel hardware, and conformal-coated electronics, it’s engineered for long-lasting performance in marine and RV applications.
Key Features
- Dual Ports – 1 × USB-C (60W max) + 1 × USB-A (36W max)
- Universal Charging – Charge laptops, tablets, phones & other USB devices
- Marine-Grade Build – IPX4 waterproof (closed), UV resistant, 316 stainless hinge & spring
- Compact Design – Ultra-small footprint, fits Ø32mm cut-out

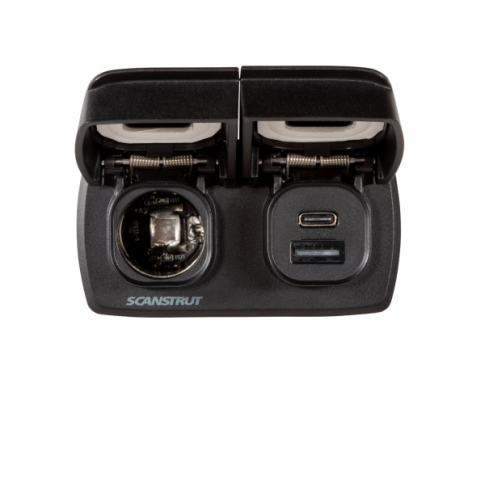

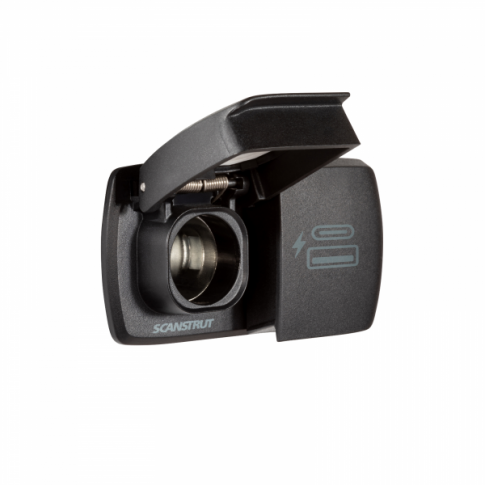

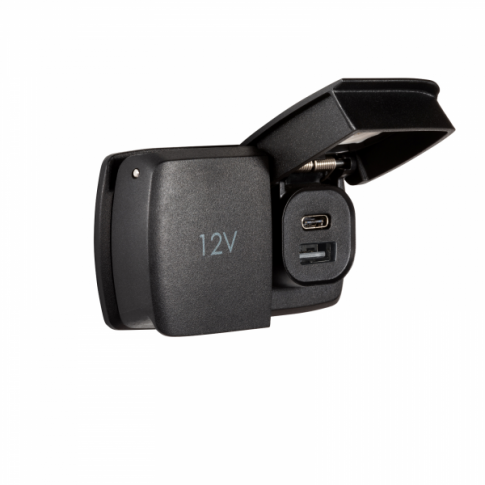

- User-Friendly – Spring-loaded flip cap protects ports when not in use

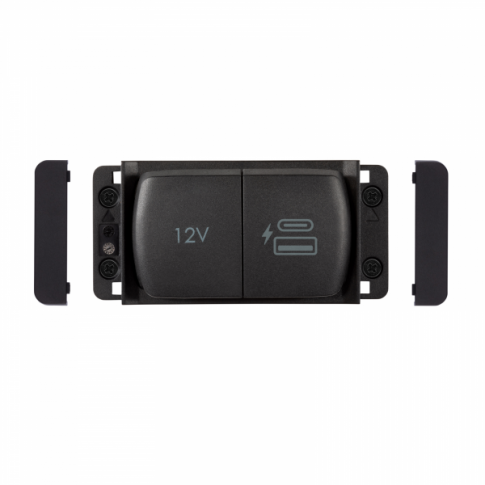

- Retrofit-Friendly – Supplied with front-fit bezel kit for simple upgrades
- Certified Safe – CE, FCC, UKCA, ROHS, WEE
What’s Included
- 1 × Scanstrut SC-MULTI-F2 Flip Pro Duo Charger
- Front-fit bezel kit
- Mounting hardware
- Installation instructions
Applications
- USB-C laptops & ultrabooks
- Tablets & smartphones (iPad, iPhone, Android)
- Action cameras, drones & GPS devices

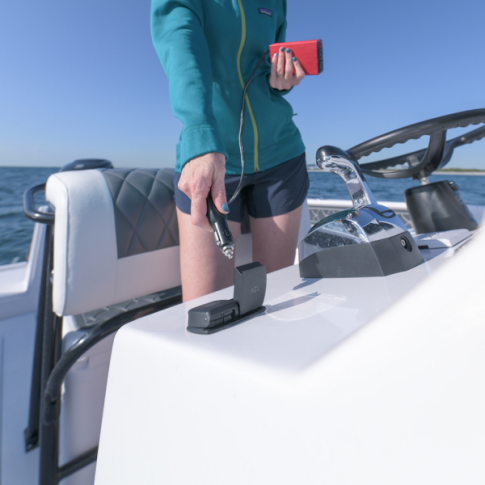

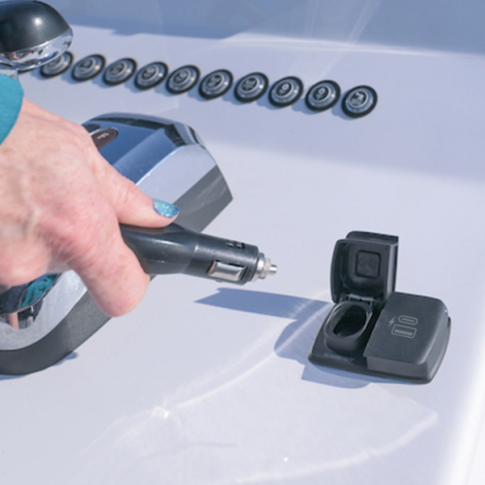

- Marine, campervan & RV 12V/24V systems
Click on the Details and Specification tabs for more information.
Specifications:
USB Outputs:
- Input Voltage: 10–32V DC (12V/24V systems)
- USB-C Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
- USB-C Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
- USB-A Output (12V/24V Systems): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
- Max Input Current: 6A (10A fuse recommended)
- Standby Power Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
12V Power Socket:
- Input Voltage: 10–15V DC (12V system only)
- Output Power: 120–150W max (up to 10A)
- Standby Draw: 0.01W
- Certifications: CE, ROHS, UKCA, WEE
Please follow the installation instructions in the Documents tab.
