Sockets
Scanstrut SC-V-W1 Ventura Series Quick-Connect Cold Water Outlet with Wash Down Kit
Phone order?
0203 150 1111
and quote the product code below

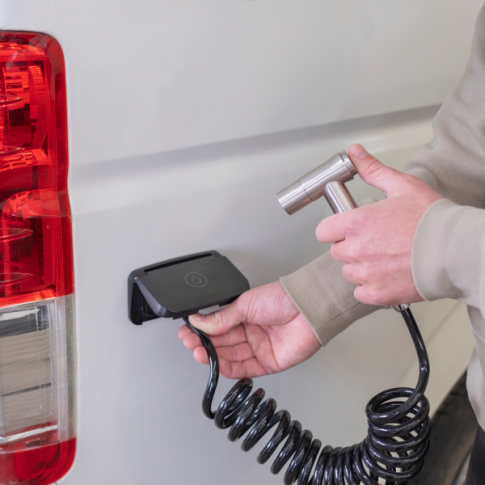

The Scanstrut Ventura Series Quick-Connect Cold Water Outlet (SC-V-W1) is designed as a hassle-free external access to cold water for marine or RV systems. This all-in-one wash-down kit provides convenient, on-demand access to cold water - perfect for rinsing off decks, muddy boots, dogs, bikes, or even giving a quick outdoor shower after a beach or trail day.
Built for harsh outdoor environments, the Ventura Series cold water outlet features spring-loaded protective caps that stay tightly closed when not in use—keeping the unit IP69K waterproof and fully washdown-ready. With UV-resistant housing, 316 stainless steel hardware, and conformal-coated electronics, it’s engineered for long-lasting performance in marine and RV applications.
Key Features
- 3m hose and shower-head - two spray patterns (Jet or Shower)
- Waterproof and UV-resistant - Tested to IP68 and IP69K standards it is built for outdoor elements
- Marine-Grade Build – IP68; IP69K (closed) waterproof, UV resistant, 316 stainless hinge and spring
- User-Friendly – Spring-loaded flip cap protects ports when not in use
- Certified Safe – ROHS

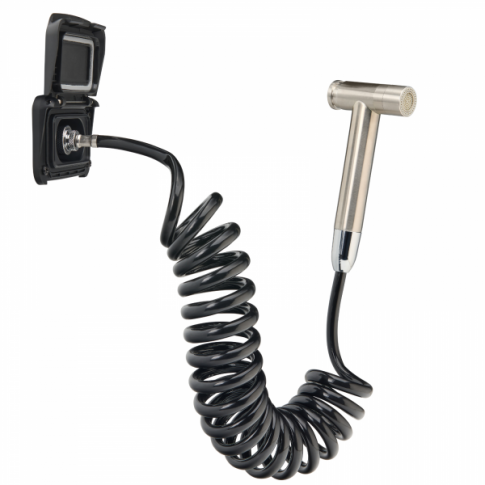

What’s Included

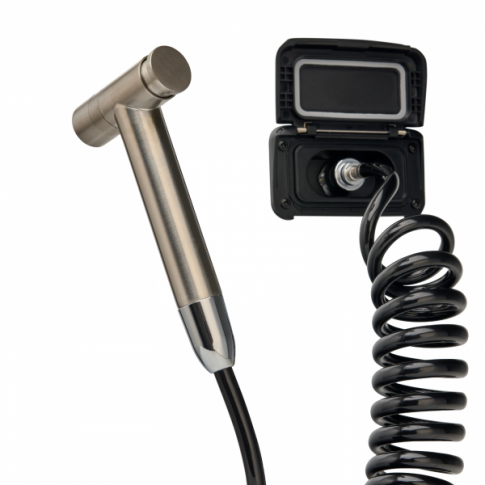

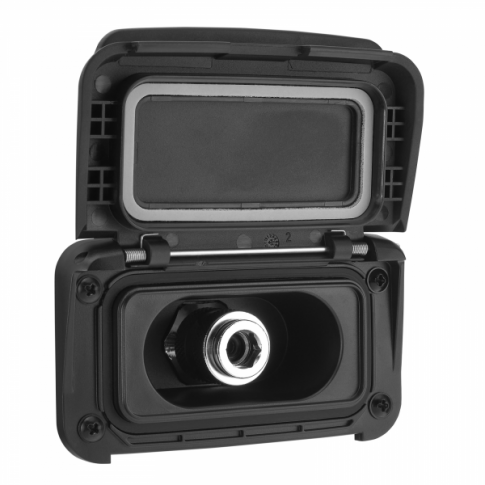

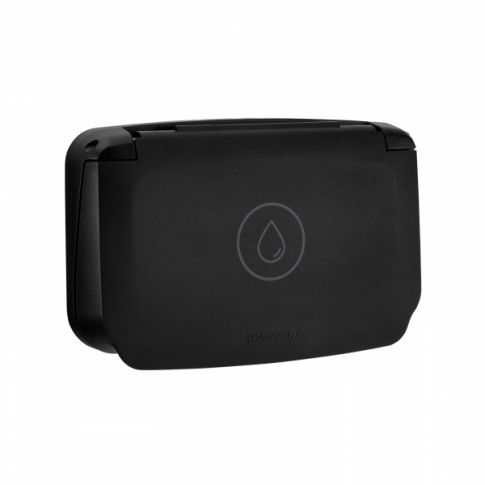

- Ventura Series Cold Water Outlet (SC-V-W1) housing and spring-loaded lid

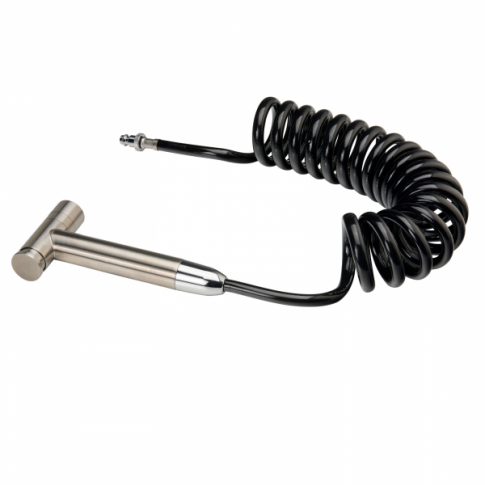

- 3m (10ft) coiled PU hose
- Stainless-steel shower head with adjusted spray patterns
- Mounting hardware
- Installation instructions
Click on the Details and Specification tabs for more information.
Specifications:
- Max Water System Pressure: 8 BAR (115PSI)
- Hose length: 3m coiled PU material
- Hose diameter: 9mm (0.35")
- Sprayer Material: Marine-Grade 316 Stainless-steel
- Spray Patterns: Jet or Shower
- Connector Material: Nickel-plated brass
- Waterproof Rating: IP68 (cover open); IP69K (cover closed)
- Certifications: ROHS
Please follow the installation instructions in the Documents tab.
