Sockets

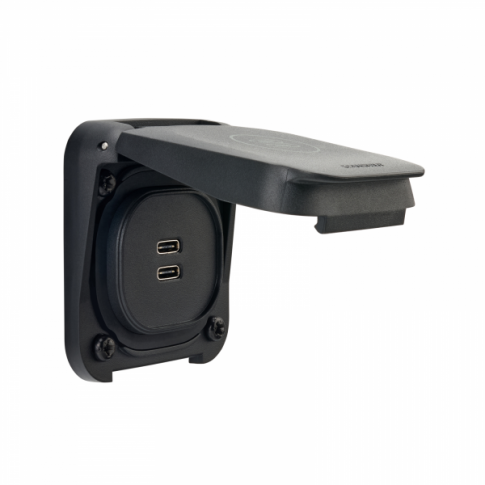

Scanstrut SC-V-USB-01 Ventura Series Dual USB-C Socket – 12V/24V Marine & RV Waterproof Charger
Phone order?
0203 150 1111
and quote the product code below
The Scanstrut Ventura Series Dual USB-C Socket (SC-V-USB-01) delivers next-generation ultra-fast USB charging in a compact, waterproof design made for life at sea. Compatible with both 12V and 24V systems, it features 2x USB-C ports, giving you the flexibility to charge multiple devices at once - including phones, tablets, and even laptops, from outside your vehicle with ease.
Engineered for harsh marine environments, Ventura Series features a spring-loaded, IP68-rated cover that stays shut to keep water and dust out, and flips open to lock cables in securely when charging. Built from marine-grade, UV-resistant materials with a 316 stainless steel hinge, it’s fully washdown-ready and built to last.
Key Features:

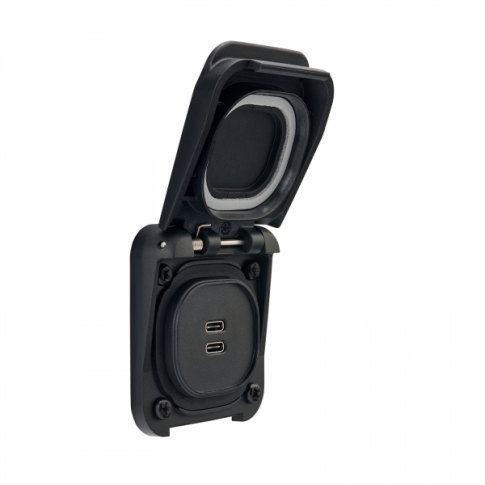

- Dual USB-C Ports – Charge up to 2 devices at the same time
- Fast Charging – Up to 60W USB-C output on 24V systems, perfect for laptops

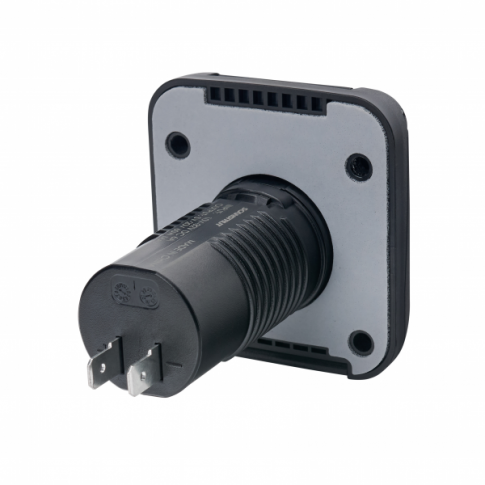

- Compact & Retrofit-Friendly – Fits a standard 29mm USB mounting hole
- IP68 Waterproof – Washdown-ready when cover is closed
- Marine-Grade Construction – UV-resistant body, corrosion-resistant internals

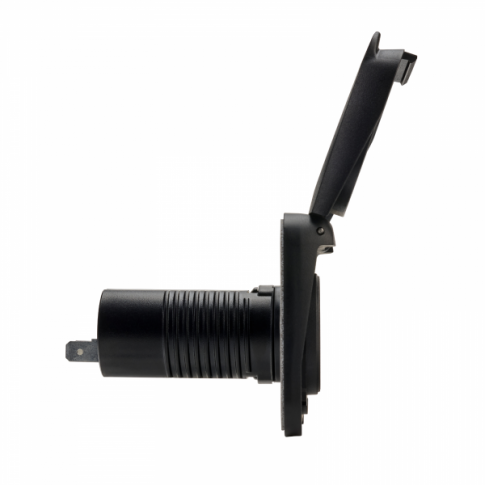

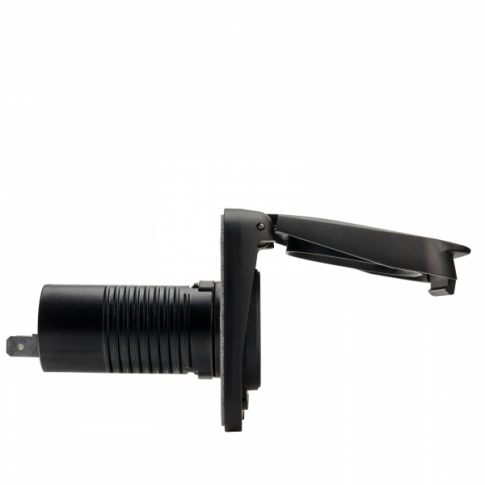

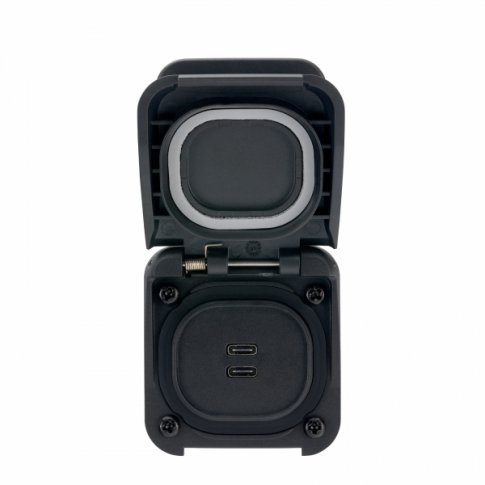

- Spring-Loaded Cover – Locks shut for protection, locks open to secure cables
- Universal Compatibility – Suitable for charging a wide range of USB-C product from phones, tablets, and laptops
Electrical Performance:
- Input Voltage: 10–32V DC (12/24V systems)
- USB-C Output:
- 12V system: 36W max
- 24V system: 60W max
- Max Input Current: 6A (10A fuse recommended)
- Standby Power Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, RoHS

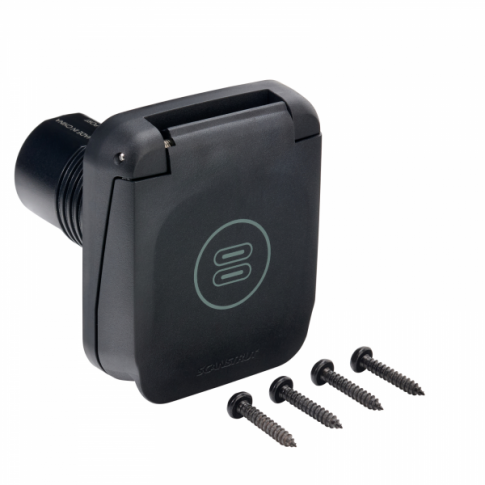

What’s Included:
- 1 × Scanstrut SC-V-USB-01 Ventura Series Dual USB-C Charger
- Front-fit bezel kit
- Mounting hardware
- Installation instructions
Applications:
- Phones, tablets & iPads
- USB-C laptops & ultrabooks
- Action cameras, drones, and GPS units
- Marine & automotive 12V/24V systems
Click on the Details and Specification tabs for more information.
Specifications:
- Input Voltage: 10-32VDC (12/24V system)
- Max Input Current: 6A
- Type-C Max Output 12V system: 5V⎓3A, 9V⎓3A, 12V⎓3A
- Type-C Max Output 24V system: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A
- Stanby Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, RoHS
Please follow the installation instructions in the Documents tab.
