DC Circuit Breakers

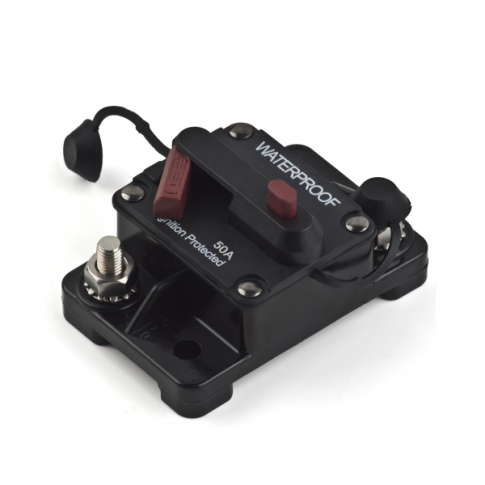

50A 12V/24V/48V Automatic over-current DC circuit breaker / switch
Phone order?
0203 150 1111
and quote the product code below
This 50A circuit breaker combines functions of a resettable 50A fuse and On/Off switch in one unit. It is ideal for any DC system that requires both over-current protection and manual isolation of the circuit. The breaker is suitable for a wide range of DC system voltages from 12V to 48V.
Like any fuse, this circuit breaker is designed to protect the system from over-current as a result of high power draw, short-circuits, wiring mistakes, equipment faults or any other high current event. The circuit breaker is resettable which makes it a superior alternative to fuses which require replacement when blown.
Additionally, the breaker has a manual-break option which allows it to be used as an isolator On/Off switch for simple disconnection and reconnection of the system.
The circuit breaker is made from strong thermal plastic engineered to withstand high temperatures (UL94V-0 rated). The breaker is also water resistant (IP67 rated) and ignition protected (meets international standards S.A.E. J1625, J1171, UL1500).
This product is suitable for a wide range of DC applications including:
- Connecting solar or wind charge controllers to batteries;
- Between off-grid inverter DC input and batteries;
- DC power distribution or charging circuits;
- Other DC automotive and marine applications.
Click on the Details and Specifications tab for more information.
Circuit breaker specifications:
- Rating: 50A
- Type: Thermal overcurrent protection device
- Material: Thermal plastic (UL rated 94V-0)
- Operating temperature: -32C to 82C
- Storage temperature: -34C to 149C
- Terminals size: M6
- Enclosure: IP67
- Size : 74 x 48 x 37 mm
- Weight : 110g
- Waterproof rating: IP67
- International standard ratings (S.A.E. J1625, J1171, UL1500)
Please note that this circuit breaker is intended for surface mounting.
The following documents are available to download:

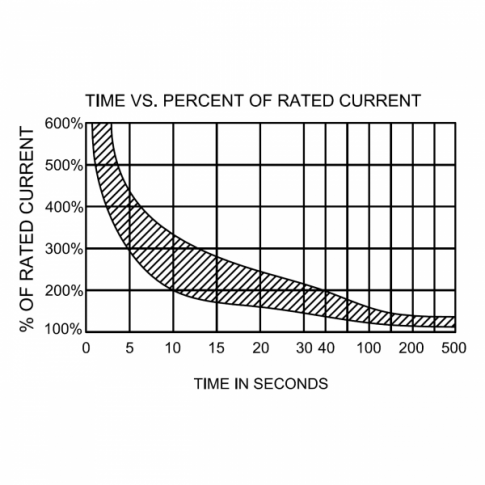

Time vs Rated Current graph for Photonic Universe 50A Circuit breaker (CB50)

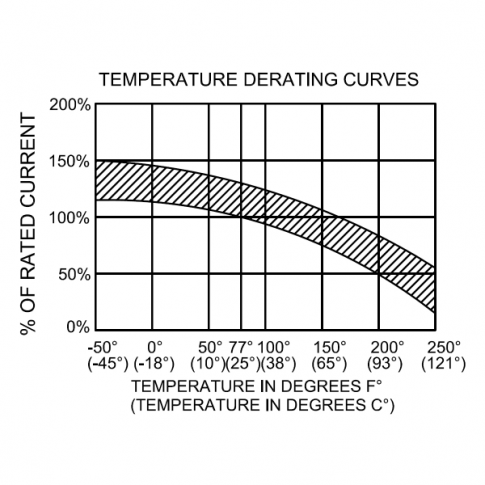

Temperature derating graph for Photonic Universe 50A Circuit breaker (CB50)
