Victron Inverters

Victron Phoenix Inverter 12/375 230V with VE.Direct port

Victron Phoenix Inverter 12/375 230V with VE.Direct port
Victron Phoenix Inverter 12/375 230V with VE.Direct port
Victron Phoenix Inverter 12/375 230V with VE.Direct port
Victron Phoenix Inverter 12/375 230V with VE.Direct port

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
VPX375-12
Ex. VAT £108.33
Inc. VAT £129.99
Availability:
In stock
Add to shopping cart



Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power electronics. Victron Energy inverters have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

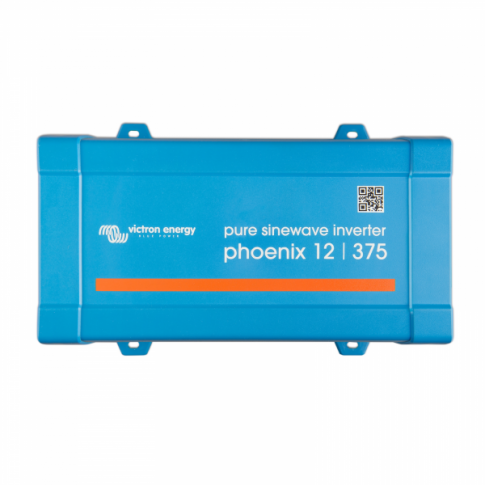

This Victron 375VA 12V Phoenix Inverter uses advanced configurable protection functions to ensure maximum safety and efficiency of DC to AC power conversion. This Phoenix inverter uniquely features an inbuilt VE.Direct port, to allow remote system monitoring and programming via a range of communication methods.

Key features of this Victron 12/375 Phoenix inverter include:

- High peak power handling: The peak power of 700W is useful for powering loads with a high initial start-up power.

- Superior build quality: The unit features a toroidal transformer which works at higher efficiency and with a cooler operating temperature compared to standard transformers.

- Inbuilt safety protection: Equipped with important safety features, such as protection against short-circuit, overload, battery overvoltage and overheating.

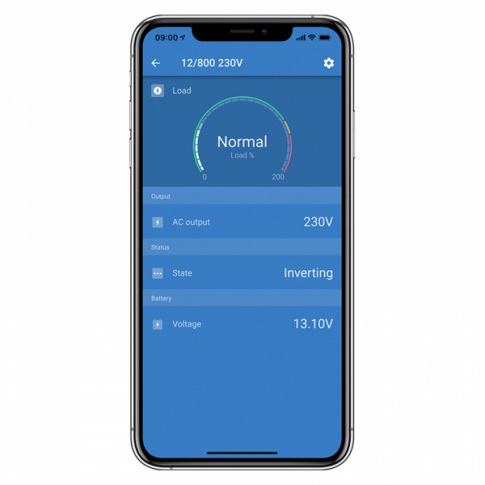

- Advanced monitoring and programming abilities: The VE.direct port of the inverter enables connection to a PC/Laptop to access the free VictronConnect software (requires VE.Direct to USB cable sold separately). Alternatively, an additional VE.Direct Bluetooth dongle (sold separately) may be connected in order to wirelessly connect a smartphone/tablet to the inverter via the VictronConnect app. Using either of these connection methods will unlock the ability to monitor the system from a remote location and view important system data such as Voltage (battery and AC output), a load indicator and alarms. The user will also gain exclusive access to a range of options for remote programming of the system - for example, specifying the low-battery cut-off level (and level for reconnection), the output voltage and frequency (50/60Hz), settings for the power-saving ECO mode. There is also the option to program the inverter so that the ignition control of your vehicle is used for switching the unit On/Off.

- Power-saving ECO mode: Switches the inverter into standby when the load power falls below a pre-set value. It will switch on every 2.5 seconds (adjustable) to check whether load power has returned to a sufficient level.

- Dynamic cut-off feature: Intelligently determines the DC disconnect voltage, by monitoring the rate of discharge from the battery (connection to VictronConnect app/software required).

- Remote On/Off Power function: Features a connection point for an optional remote on/off switch (not included).

- AC Power transfer: The inverter can be connected to an optional automatic transfer switch (not included) to transfer the load to another AC power source.

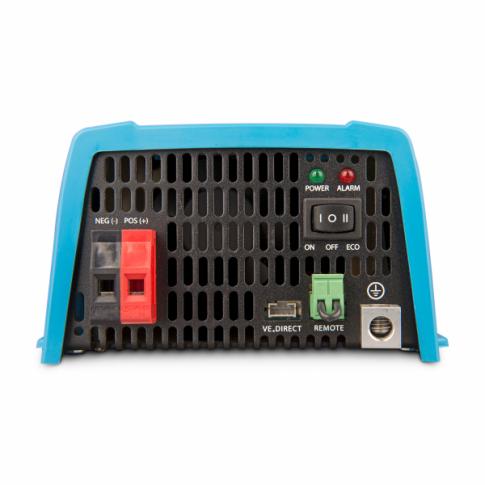

- LED Indicators: Red / green LEDs show inverter operation and status of various protection features.


The inverter is fitted with a UK 3-pin plug socket.

Click on the Details and Specifications tab for more information.



Specifications:

  • Input DC voltage range: 9.2V - 17V
  • Output AC voltage range: 230V
  • Output AC frequency: 50Hz / 60Hz (programmable with app)
  • Continuous power at 25°C: 375VA / 300W
  • Continuous power at 40°C: 260W
  • Peak power: 700W
  • Zero-load power: 5.6W
  • Default zero-load power in ECO mode: 0.9W (Default retry interval = 2.5s, adjustable)
  • Output wave: pure sine wave
  • Battery type: Sealed lead acid, Gel, AGM
  • AC socket: UK (BS 1363)
  • Minimum battery capacity: 40Ah
  • Nominal inverter efficiency: 89%
  • Low battery shutdown: 9.3V (programmable with app)
  • Operating temperature range: -40°C to +65°C (fan assisted cooling)
  • Maximum cable cross section: 10mm²
  • Humidity (non-condensing): max. 95%
  • Size: 86 x 165 x 260 mm
  • Weight: 3kg



This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.



This inverter comes with a detailed user manual (see Documents tab) which explains wiring, installation and operations.

Please note that this inverter is not supplied with cables. Detailed recommendations for cable length and thickness are available in the user manual.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
