Remote meter / display for 10A-60A MPPT and PWM solar charge controllers TR/PTR/VS/PU/LS Series

Remote meter / display for 10A-60A MPPT and PWM solar charge controllers TR/PTR/VS/PU/LS Series
Remote meter / display for 10A-60A MPPT and PWM solar charge controllers TR/PTR/VS/PU/LS Series

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
MT50
Ex. VAT £24.16
Inc. VAT £28.99
Availability:
In stock
Add to shopping cart

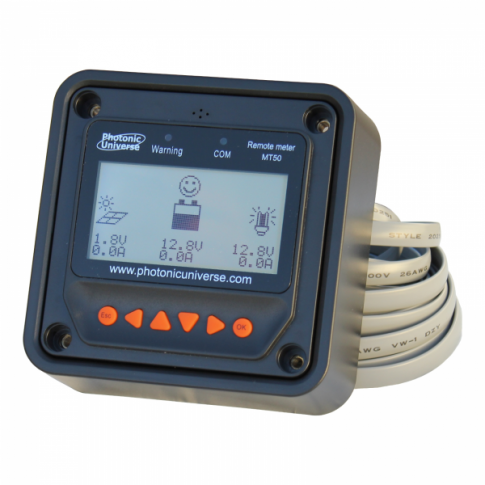

This high quality, brand new remote display / monitor can be used with 10A - 40A MPPT solar charge controllers / regulators TR/PTR series with 12/24V battery systems. It is also compatible with a broad range of PWM models, including VS, PU and LS series, amongst others. It's ideal for remote system monitoring as it allows you to have full control over the charging process. This unit can display various charging parameters such as voltage, current (separately for solar panel / load), battery state of charge etc. It can also record accumulated charge and discharge energy, as well as min / max voltage.

By adding this remote meter to your solar charge controller, you will also unlock a range of exclusive settings which give you far greater control over your solar system. With access to this vast range of charging parameters, you will be able to:

- Amend the battery type and capacity
- Select charging volts for different charging stages
- Specify the duration of each charging stage
- Create a user-defined battery type with charging parameters specific to your battery (if the pre-existing options are unsuitable)
- Personalise the 'load' settings - e.g. set timers for lighting, fans, pumps

Additional Features:

- This remote meter also has self-diagnostic capability, and will highlight any system errors using advanced fault-targeting technology.
- The clever design of this model features a removable external frame which allows the meter to be either flush mounted or surface mounted, depending on personal preference.

Compatibility:

This remote meter can be used with any of our high efficiency MPPT and PWM solar charge controllers, e.g.:

- TR and PTR series (models TRxxxxBN and PTRxxxxA)
- VS Series (models VSxxxxBN)
- PU Series (models PUxxxxB)
- LS Series (models LSxxxxB)

If you already have one of our compatible solar controllers, you can easily add this remote meter to your controller - just plug the cable supplied with the meter into the RJ45 socket of the controller. Please note: this remote meter is not suitable for dual battery solar charge controllers.

Click on the Details and Specifications tab for more information about this product.





Specifications:

  • Suitable for 10A-60A MPPT and PWM solar charge controllers TR/PTR/VS/PU/LS Series
  • Self-consumption: 15-65mA (depending on backlight settings)
  • Operating temperature: -20C to +70C
  • Communication cable: RJ45 (8pin) 5 metres included
  • Wall mounting frame with mounting holes included
  • Size (without frame): 10 x 10 x 3 cm
  • Size (with frame): 12 x 12 x 5 cm
  • Weight: 230 g



The product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.



The unit comes with a detailed user manual which explains connection and operations.

Please note:
- This unit is only suitable for MPPT and PWM solar charge controllers TR/PTR/VS/PU/LS series. It is not suitable for dual battery solar charge controllers DB or EPIPCOM series, or eTracer 45A/60A solar charge controllers.
- For flush-mounting, this meter will require a recess in the mounting wall/ surface

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).



You can download the following documents for this product:

User manual for MT50 remote meter for 10-60A MPPT and PWM solar charge controllers
