Medium dual battery kits 40W-60W

40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables

40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables
40W 12V dual battery solar charging kit with 10A controller, mounting brackets and cables

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
SWD-40M-DB
Ex. VAT £133.33
Inc. VAT £159.99
Availability:
In stock
Add to shopping cart



This high efficiency 40W 12V charging kit is perfect for permanent outdoor use to provide free electricity for charging a 12V battery to power various devices for many applications such as in a camper van, boat, shed or farm.

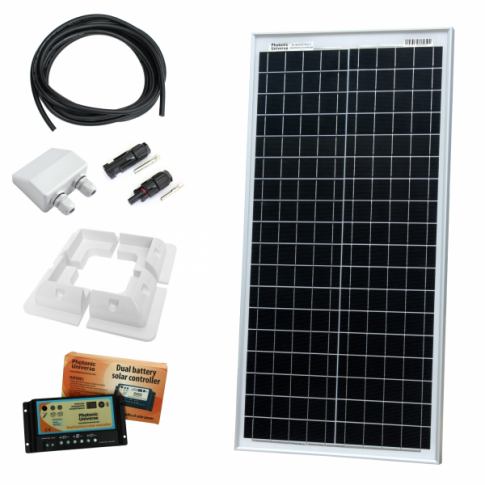

This is a complete 40W solar charging kit which includes:

  • High efficiency 40W monocrystalline solar panel with 5m of special solar cable and waterproof connectors
  • 10A 12V dual battery solar charge controller for independent charging of two batteries or battery banks (can work with a single battery too)

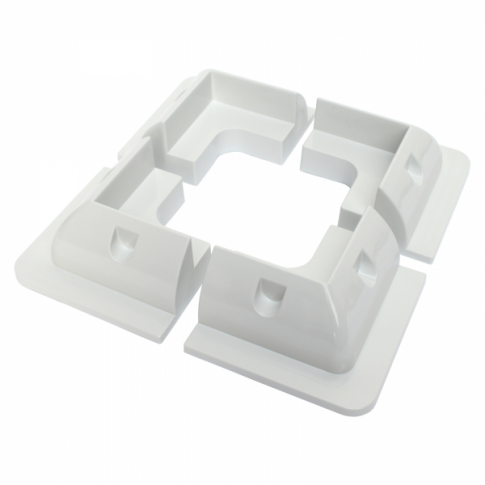

  • Set of 4 corner plastic brackets for bonding to the roof

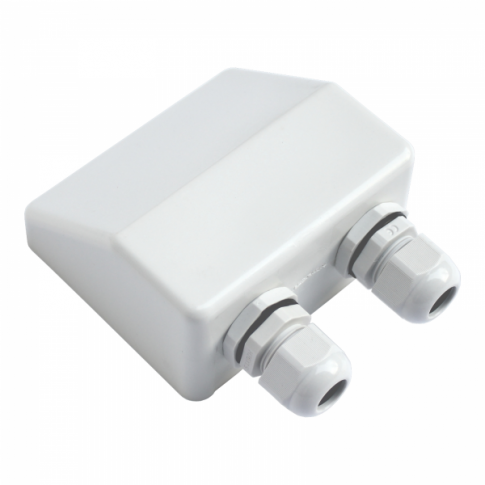

  • Waterproof double entry cable gland

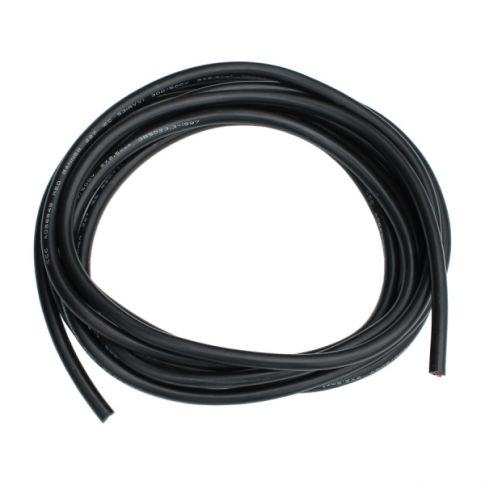

  • 5m of twin core battery cable

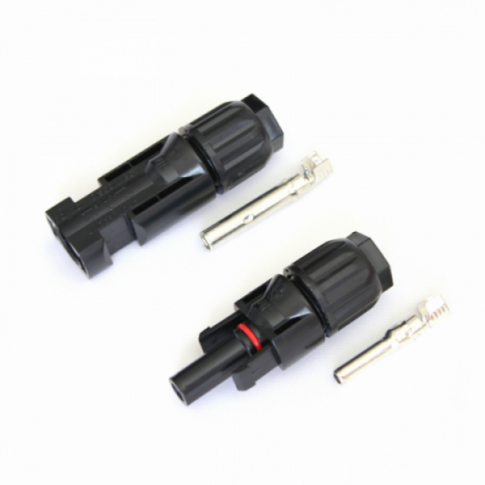

  • Pair of waterproof MC4 connectors for easy connectivity
  • User manual with detailed installation instructions

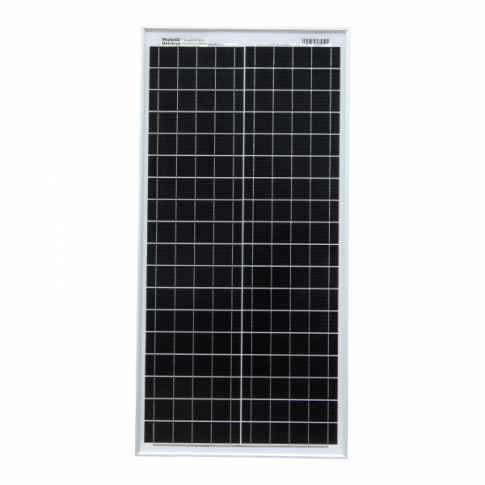

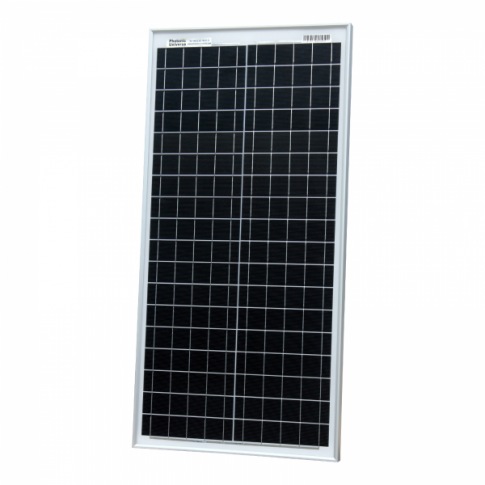

40W solar panel:

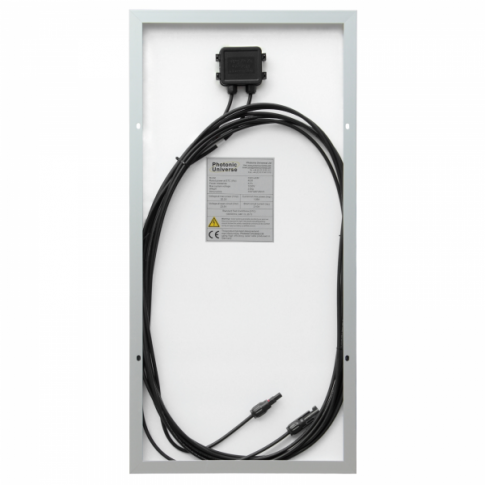

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, extension leads or to your existing system (the MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller).

The long-lasting, high-efficiency monocrystalline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures the panel can be used in all weather conditions.

This panel also features innovative 5 busbar solar cells, which are more efficient than the 2, 3 or 4 busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even in high ambient temperatures.

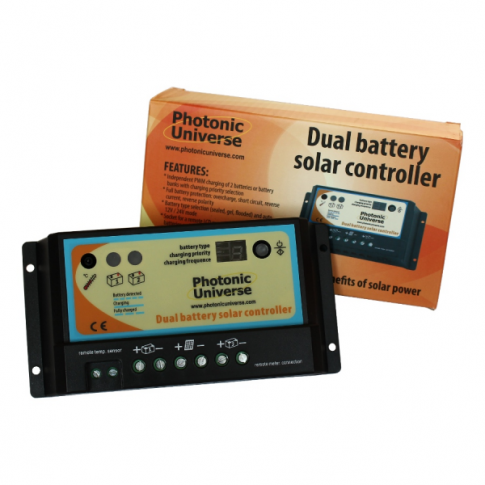

10A solar charge controller:

The kit includes a 10A 12V/24V dual battery solar charge controller designed to charge and protect two batteries independently, with automatic cut off to prevent over-charging. The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance and prolongs the life of your batteries. PWM technology can also recover some lost battery capacity

This is a perfect solar controller for a caravan / camper van / boat or another system with two batteries (e.g. engine and leisure battery) or battery banks. You can set the initial charging priority e.g. 80% power to go to the engine battery and 20% to leisure battery. When one of the batteries is fully charged the controller will automatically divert all power to the other battery.

Can the unit work with only one battery? Yes, absolutely! The controller will determine automatically if there's only one battery connected and will pass 100% of charging current to this battery. You can add a second battery later.

The unit has many protection functions, such as stopping reverse current at night (from the battery back to the solar panel), over charge, short circuit, reverse polarity etc. Other features include various LED indicators, battery type selection (sealed, gel, flooded) and an RJ-45 socket for an optional remote LCD meter with 10m cable.

A built-in temperature sensor allows the controller to optimise the charging process depending on the ambient temperature. If you are planning to position the controller far away from the battery, or if the battery and the controller are exposed to different ambient temperatures, an external remote temperature sensor with 3m cable is recommended for this dual battery solar charge controller. To enable connection to the screw terminals of the controller, the green connector block on the end of the remote temperature sensor cable should be cut off.

Additional items:

This kit includes a set of 4 plastic corner mounting brackets for fixing the solar panel to the roof. The brackets can be bonded to the roof using an appropriate sealant (not included). The waterproof double cable entry gland included with the kit is perfect for getting cables from outside to inside and keeping the place fully waterproof. The kit also includes 5m double core battery cable and a pair of MC4 connectors. The full length of cable can be used for 1 battery, or it can also be cut into 2 pieces (e.g. into 2m and 3m) for use in dual battery systems.

Click on the Details and Specifications tab for more information about this product.



Solar panel specifications:

  • Peak power: 40W
  • Maximum power voltage: 20.2V
  • Maximum power current: 1.98A
  • Open circuit voltage: 23.9V
  • Short circuit current: 2.10A
  • Power allowance range: +/- 3%

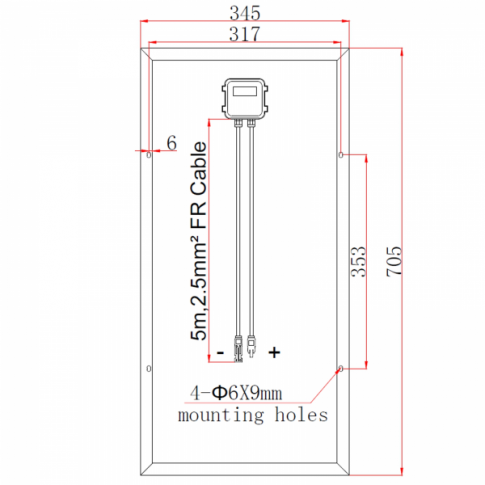

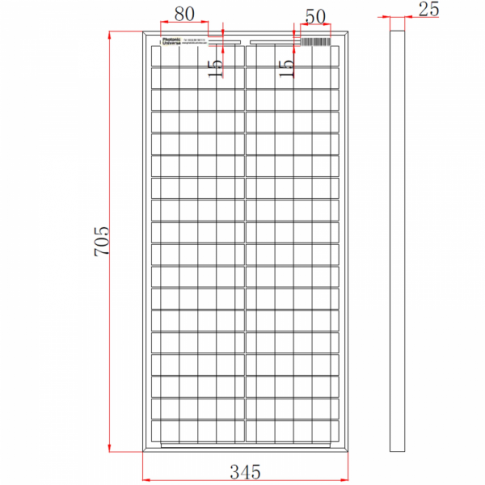

  • Dimensions: 705 x 345 x 25mm
  • Weight: 3.5 kg
  • 4 mounting holes 9 x 11 mm
  • 2 x 5m of high quality single core solar cable 2.5mm cross section
  • Male and female MC4 connectors



Charge controller specifications:

  • Fully automated operation and auto 12/24V selection
  • 3 pairs of terminals (input, battery 1, battery 2)
  • LEDs to indicate state of charge
  • Temperature sensor for temperature compensation of charging (-30mV/C/12V)
  • Additional connection point for a remote temperature sensor (not included)
  • RJ-45 connection point for a remote meter (not included)
  • Various protection features (over charge, short circuit, reverse polarity etc)
  • Self-consumption: 4mA at night, 10mA when charging
  • Working temperature: -35C to +55C
  • Terminals for wire up to 4.0mm2
  • Size: 15.5 x 7.6 x 4.0 cm
  • Weight: 185 g
  • Multiple mounting holes for ease of installation



Corner brackets specifications:

  •     Material: plastic
  •     Colour: white
  •     Size (1 bracket): 15x15x6.5cm
  •     Weight: (4 brackets): 1.6kg



Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1 year warranty (including a 1 year warranty for the solar charge controller, and 1 year workmanship warranty for the solar panel). For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

For installation advice please click on the Installation tab.



It's very easy to wire this kit up: simply connect the first battery to the Battery 1 terminals of the solar charge controller (battery "+" to the "+" Battery 1 terminal of the solar controller, battery "-" to the "-" Battery 1 terminal of the solar controller), then connect the second battery to the Battery 2 terminals of the solar controller (skip this step if you only have one battery). Finally, connect the solar panel to the solar terminals of the controller (solar panel "+" to the "+" solar terminal, solar panel "-" to the "-" solar terminal) . The kit is now ready and will start charging immediately! Disconnection should follow the reverse order.

Connection diagram for this solar kit is provided below:

Connection diagram for 40W 12V  Photonic Universe dual battery solar charging kit

Additional information can be found in the detailed installation manual which comes the kit (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
